SP-20 Handheld Oximeter
SP-20 Handheld Oximeter
Couldn't load pickup availability
- For fast and precise measurements of SpO2 and PR
- Illuminated, easy-to-read 3.5-inch colour display
- Long battery life (up to 18 hours)
- Data storage capacity: 500 hours
- Sensor for adults included
SP-20 Handheld Oximeter
The SP-20 Handheld Oximeter from Lepu Medical can measure SpO2 and pulse rate. It is versatile for use in adults, children and infants. The lithium battery allows an operating time of up to 18 hours, while the data storage accommodates 500 hours of SpO2 data. On the 3.5-inch colour display, information such as PI%, plethysmograph and pulse bar are displayed clearly and comprehensively, and the display can be easily switched between landscape and portrait modes.
Additionally, the device enables convenient 7x24 continuous monitoring, making it ideal for both home and medical facility use. If the predefined limits for SpO2 or pulse rate are exceeded, the intelligent alarm system triggers audible and visual signals.
Product Details
- SP-20 Handheld Oximeter from Lepu Medical

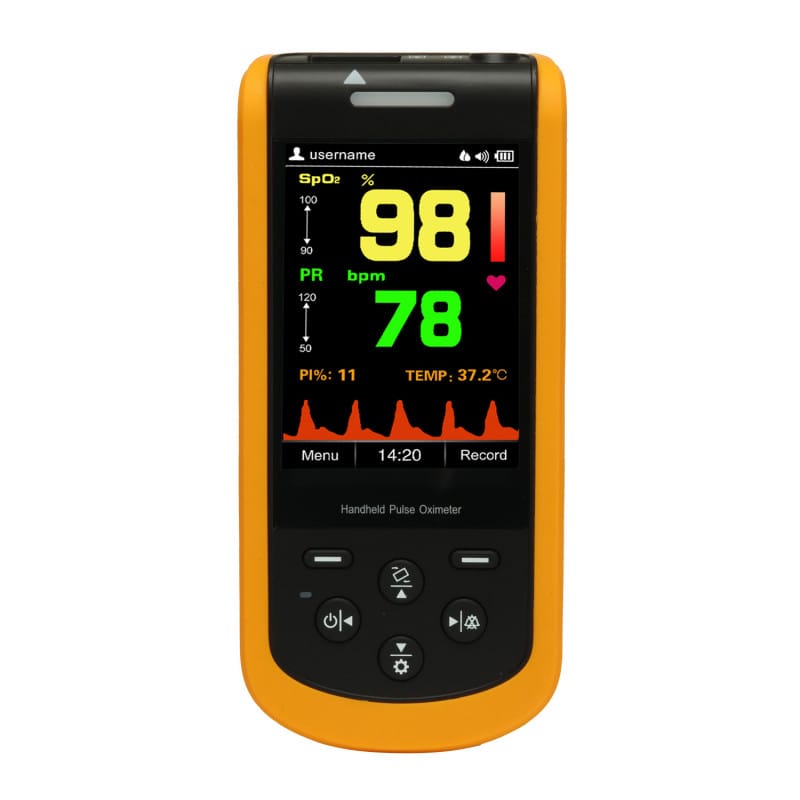

- High-resolution 3.5-inch colour display with PI%, plethysmograph, and pulse bar
- Allows measurement of oxygen saturation (SpO2) and pulse rate
- Suitable for measurements in adults, children and newborns
- Integrated lithium battery for an operating time of up to 18 hours
- Continuous 24/7 monitoring system
- Includes perfusion index display
- Adjustable threshold settings
- With a large data storage capacity (500 hours for SpO2 data)
- Data can be retrieved at any time
- For up to 16 user accounts
- Adjustable backlight
- Delivers fast and accurate measurements
- Real-time display of battery status and notification of low battery voltage
- Automatic screen orientation (horizontal/vertical)

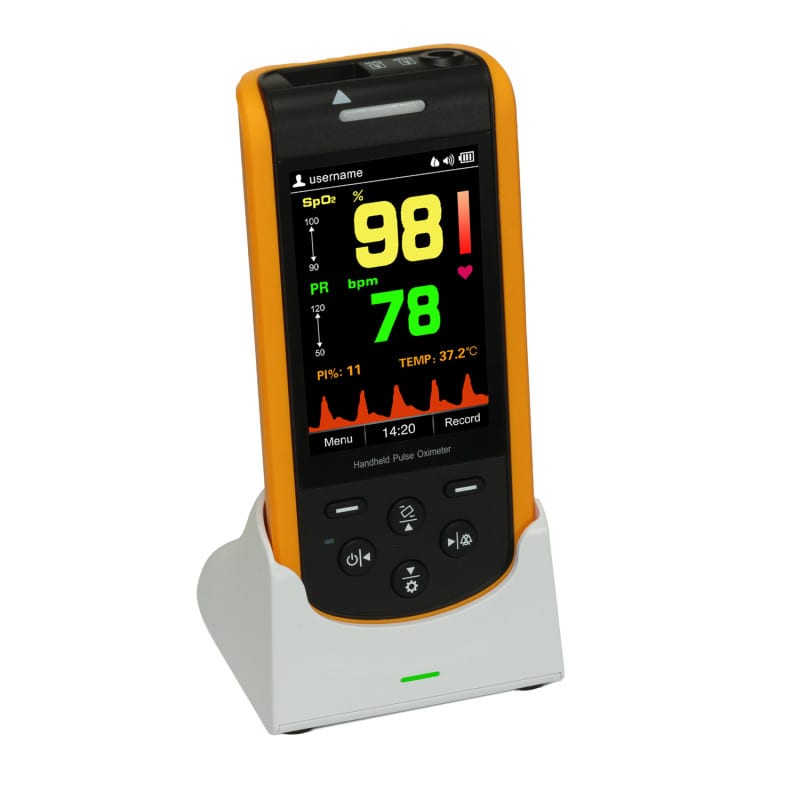

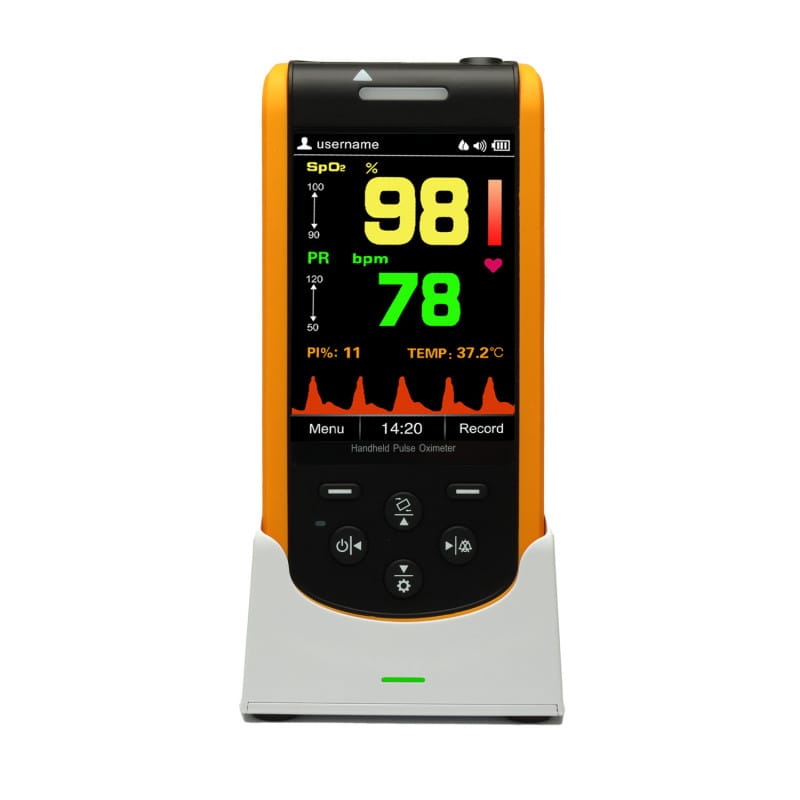

- Integrated stand for convenient device placement
- With automatic shutdown function (3 minutes) and power-saving mode
- Audible and visual alarm signals
- Complies with standards: EN 60601-1-2, IEC60601-1-2, ISO 80601-2-61
- Easy data management via PC software

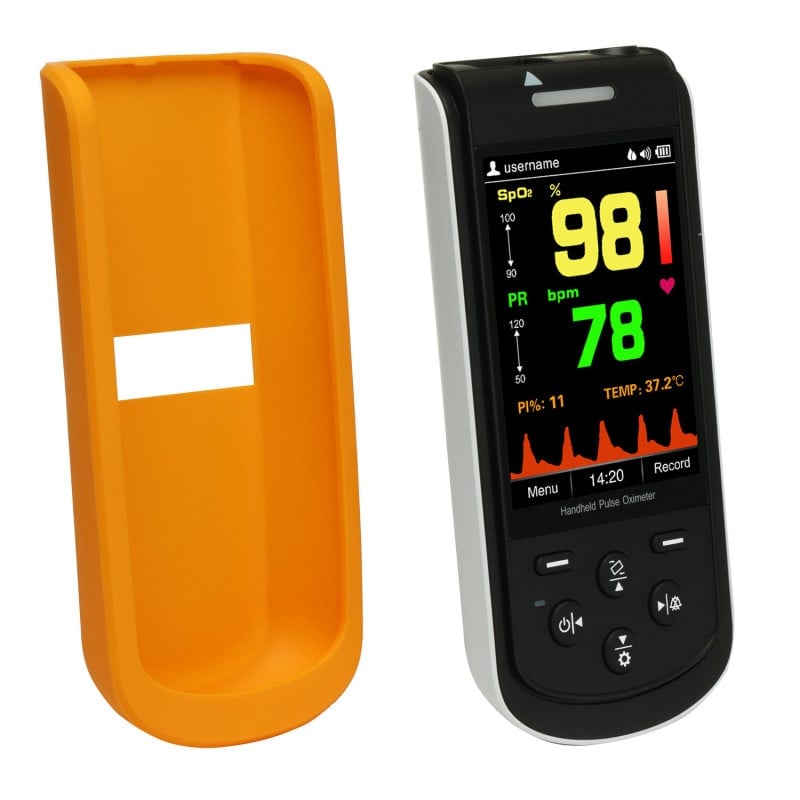

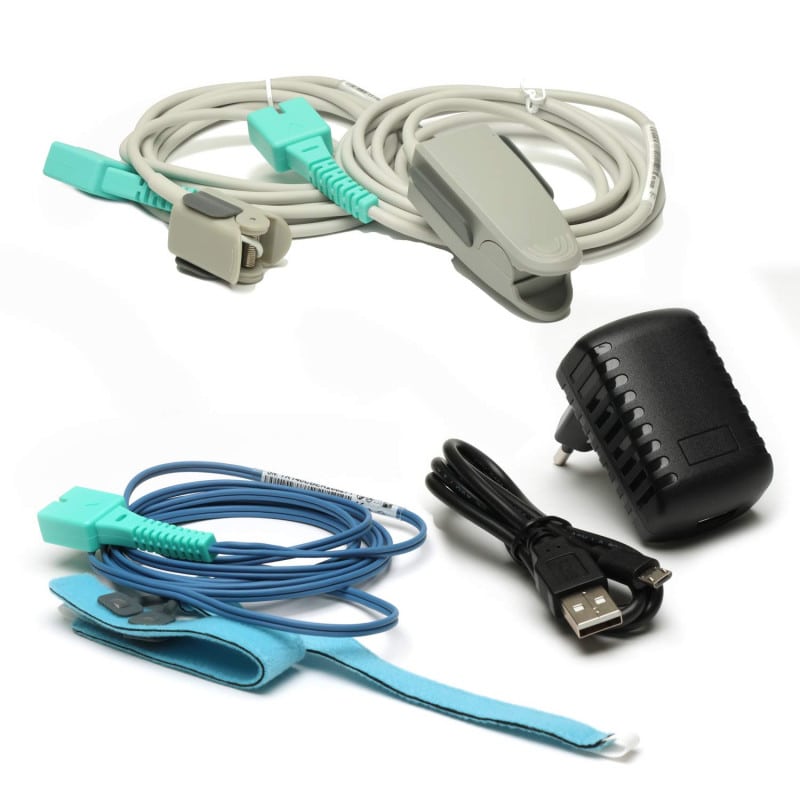

- Delivery contents: oximeter, SpO2 sensor for adults, charging station, protective case, user manual
Technical Details
| Measurement Mode | Continuous or intermittent |
| Data Storage | Up to 500 hours |
| Display | 3.5-inch LCD colour display with rotation |
| Power Supply | 2,000 mAh Lithium Battery |

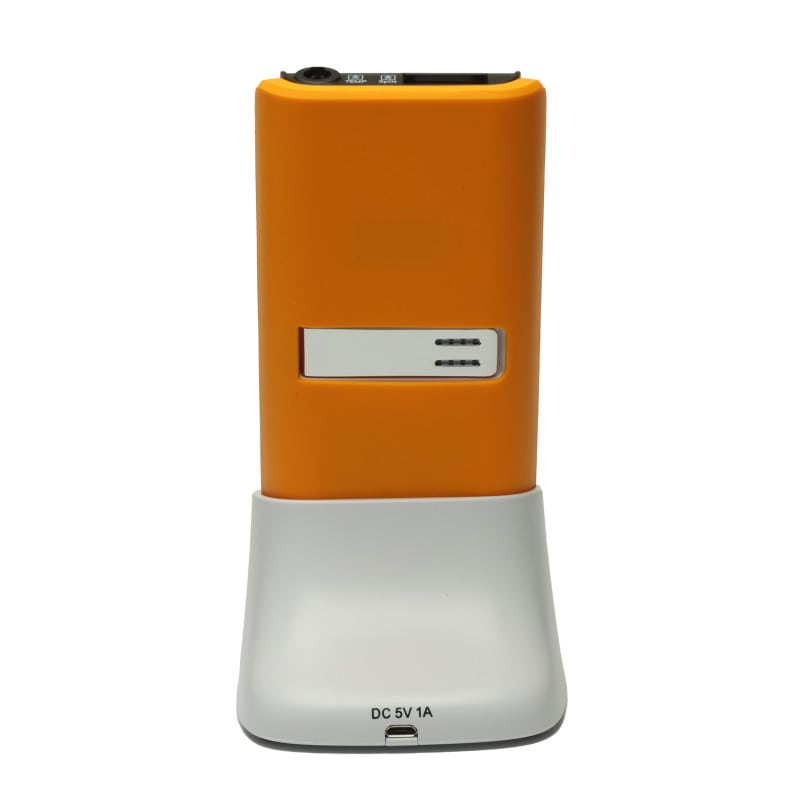

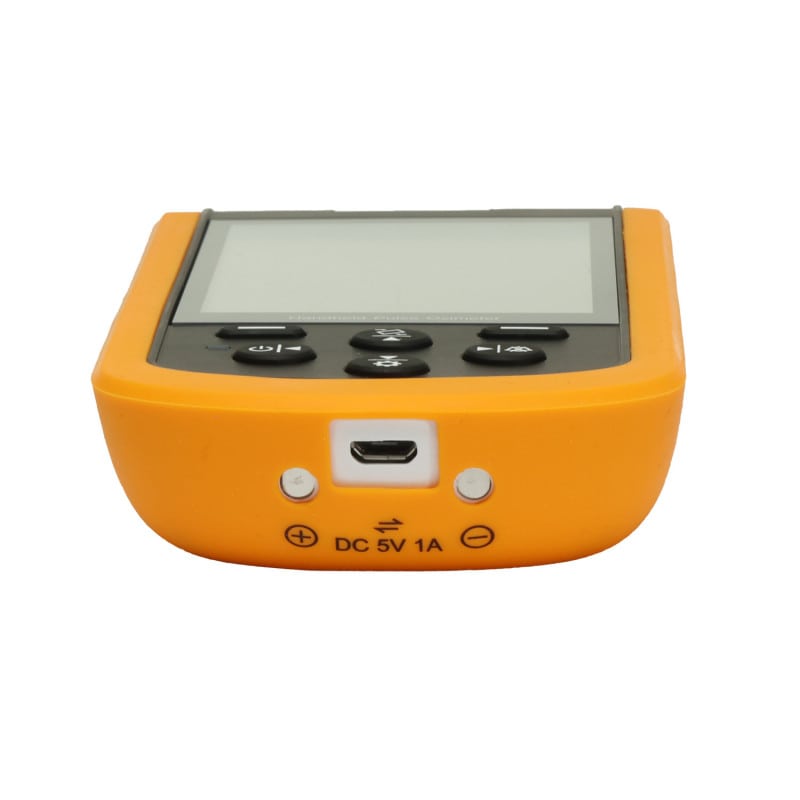

| Charging | Charging station or USB cable |
| Size (L x W x H) | 158 x 73 x 25 mm |
| Weight | 230 g (including battery) |
| Data Upload | USB cable or wireless |
| Operating Environment | |
| Operating Temperature | 5 - 40°C |
| Operating Humidity | 15 - 93% (non-condensing) |
| SpO2 | |
| Measurement Technology | LED sensor with 2 wavelengths |
| Measurement Range | 0 - 100% |
| Measurement Accuracy | ±3% (range of 70-100%) |
| Pulse Rate | |
| Measurement Range | 30 bpm - 250 bpm |
| Measurement Accuracy | ±2 bpm or ±2% |
| Perfusion Index | |
| PI Display Range | 0.2 - 20% |
