seca mVSA Spot Check Monitor with MASIMO SpO2 and ear thermometer

• With integrated bio-impendence analysis
• High-performance software
• Shock and scratchproof touchscreen
• Networkability
• Available with different configurations

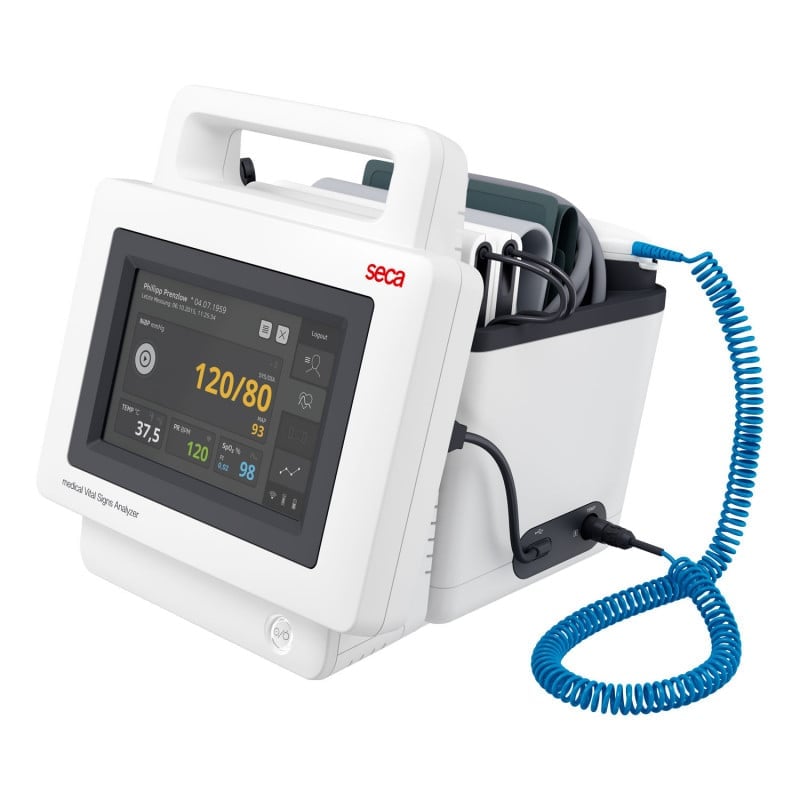

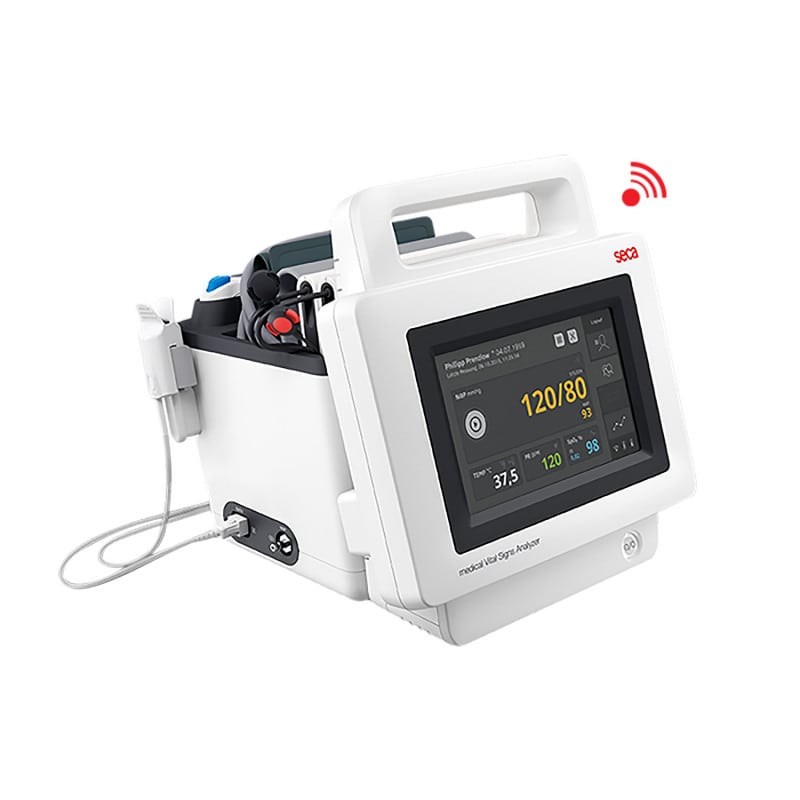

seca mVSA Spot Check Monitor

The seca mVSA is the first spot check Monitor worldwide that offers a combination between vital sign measurement and bio-impendence measurement. Depending on the version, the patient monitor measures blood pressure, pulse, SpO2 and temperature as well as fat tissue, muscle tissue, body water and phase angles.

Thanks to various connectivity options, the seca mVSA can be integrated into the surgery and hospital network and connected to wireless products from the seca 360° selection. The monitor is equipped with an internal memory for up to 70,000 measurements and thanks to its software, the results and progression analysis can be viewed and evaluated directly on the monitor.

The 7 inch touchscreen is shock and scratch-proof and can be operated while wearing gloves. It is particularly easy to clean and ideal for mobile use, due to its integrated lithium-ion battery.

Product Details

• seca mVSA spot check monitor
• Model: mVSA 535
• To monitor vital signs
• With BIA module (bio-electric impendence analysis)
• Non-invasive blood pressure measurement
• 7 inch touchscreen display
• Can be operated while wearing gloves
• Shock and scratch-proof
• With day and night mode
• Ports: Ethernet, USB 2.0, WiFi
• With seca 360° wireless technology to integrate into PDMS systems and for use with seca measurement systems and scales
• Internal memory for up to 70,000 measurements
• Lithium-ion battery for mobile use
• Available in multiple versions (optional with SpO2 and temperature module)
• Dimensions: 25.2 x 26.2 x 27.8cm (H x W x D)


Possible Application

Thanks to the extended diagnostic options, the seca mVSA can be used to monitor the functioning conditions of the body and the metabolism. The monitor is also suitable for monitoring the treatment process of exsiccosis patients and patients with heart failure or COPD.

BIA Module

• 8 point bio-electric impendence analysis
• To examine body composition
• To measure body water, fat tissue, muscle tissue and phase angles
• Measurement frequencies: 1, 2, 5, 10, 50, 100, 200 and 500 kHz
• Measuring time: 30 seconds


Blood Pressure Measurement

• Oscillometric measurement
• Measures up and down
• Single or multiple measurements
• Pulse rate is determined automatically


SpO2 Measurement

• With seca or Masimo SpO2 module
• Measurement range: 0 - 100%
• Automatic pulse rate measurement


Temperature Measurement

• Genius 2 in-ear measurement

• Can be read in °Celsius and °Fahrenheit
• Measurement time: approx. 2 seconds
• Measurement range: 33 - 42°C or 91.4 - 107.6°F


Delivery Contents (depending on the version)

• seca mVSA spot check monitor (standard)
• Short instructions (standard)
• Power cord (standard)
• seca blood pressure cuff, size M (standard)
• Button electrodes to stick on (standard)
• Measuring mat with battery and electrode cables (standard)
• Covidien Genius 2 ear thermometer (version with ear thermometer)
• SpO2 sensor MASIMO SET or seca (version with SpO2 MASIMO or seca)
• Patient cable MASIMO SET or seca (version with SpO2 MASIMO or seca)
