PC-900B Capnograph & Oximeter
PC-900B Capnograph & Oximeter
Couldn't load pickup availability
- Monitoring of oxygen, pulse, CO2 and respiratory rate
- 24-hour memory for trend and numerical data
- Quick start-up in less than 20 seconds
- With rechargeable lithium battery
- Dimensions (W x H x D): 70 x 160 x 40 mm
PC-900B Capnograph & Oximeter

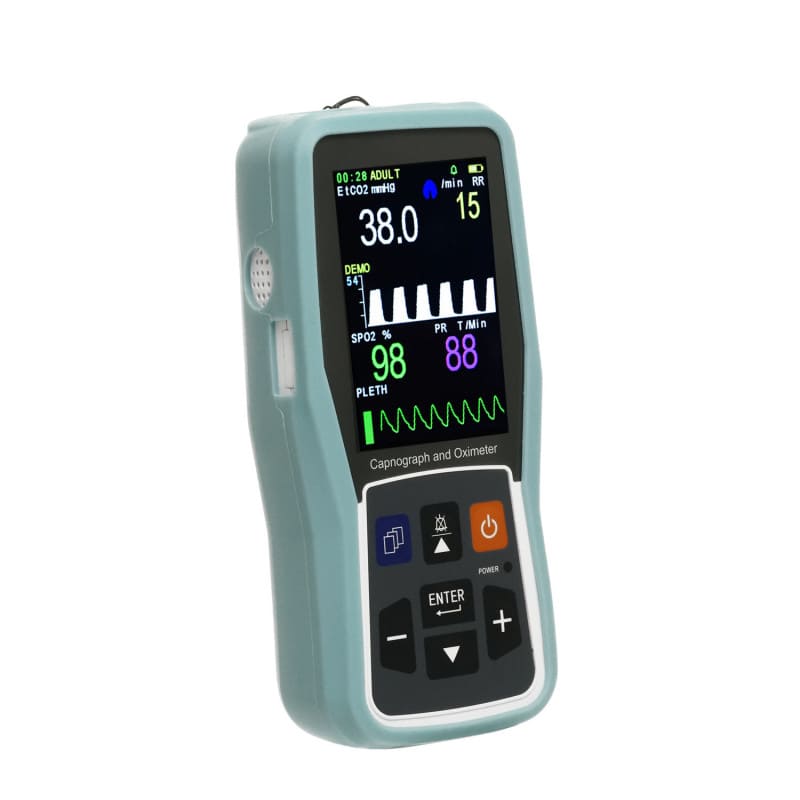

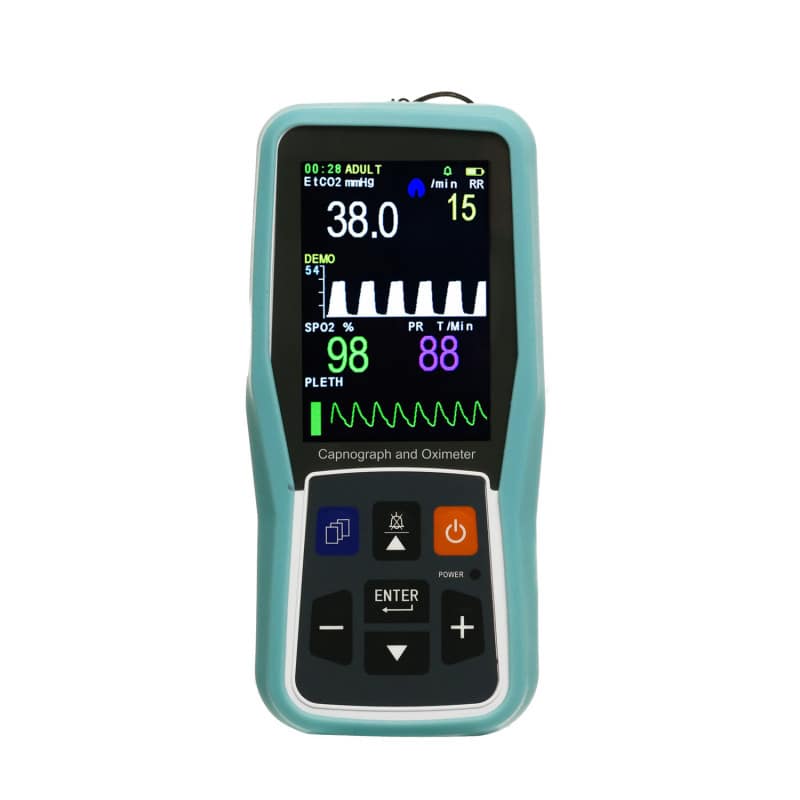

The PC-900B Capnograph & Oximeter from Lepu Medical is an extremely compact and lightweight medical monitoring device with a 3.5-inch colour display and a user-friendly interface. Precise measurements are ensured through the temperature, pressure compensation, and zero-resetting system. With the adjustable pump flow rate, the device flexibly adapts to adult, paediatric and low-flow sample lines.
In addition, the device features acoustic and visual alarms that can be customised to signal threshold breaches and apnea. With the integration of MoveOxy SpO2, the device ensures reliable oxygen saturation measurements. Thanks to the built-in lithium-ion battery, the device can operate for up to 10 hours. This makes it extremely flexible and versatile in various medical settings. This device is suitable for both intubated and non-intubated patients and is characterised by a large colour display that optimally presents all measured values.
Product Details
- Portable PC-900B Capnograph & Oximeter
- 3.5-inch colour display
- Compact and lightweight device with a simple user interface
- Integrated temperature, pressure compensation, and zero-resetting system
- For EtCO2, RR, and SpO2 monitoring
- Balanced gas compensation minimises disturbances from other gases
- Switchable display in kPa / mmHg / %
- Suitable for adults, children, and infants
- Integrated lithium-ion battery with up to 10 hours of operation
- Adjustable flow rate: Suitable for adults, children, and low-flow samples
- 24-hour memory for trend and numerical data
- Ideal for use in emergency situations
- Acoustic and visual alarms for threshold breaches and apnea
- Storage of 24-hour graphic trend even after turning off
- Applicable for intubated or non-intubated patients
- USB connectivity for easy data transfer
- Warm-up time approximately 20 seconds
- Charging time: 4 hours
- Dimensions: 70 x 160 x 40 mm (W x H x D)
- Weight: 0.6 kg
- Languages: English, German, Spanish, Italian, French
Technical Details
| Display | 3.5 Inch colour display |
| Dimensions (W x H x D) | 70 x 160 x 40 mm |
| Weight | 600 g |
| Battery Type | Rechargeable lithium battery |
| Charging Time | 4 Hours |
| Operating Time | 10 hours on full charge |
| Calibration | Self-zero calibration, annual calibration check recommended |
| Protection Class | IP32 (when used with blue silicone cover) |
| Operating Conditions | - Temperature: -5 to 50 °C, - Humidity: <93% (non-condensing), - Atmospheric Pressure: 70 to 120 kPa |
| Storage Conditions | - Temperature: -30 to 70°C, - Humidity: <93% (non-condensing), - Atmospheric Pressure: 50 to 120 kPa |
| EtCO2 | |
| Measurement Mode | Non-dispersive infrared spectroscopy |
| Range | 0 to 150 mmHg or 0 to 20 kPa or 0 to 20% (v/v) |
| Accuracy | ±2 mmHg for EtCO2 in the range of 0 - 40 mmHg, ±5% for EtCO2 in the range of 41 - 70 mmHg, ±8% for EtCO2 in the range of 71 - 100 mmHg, ±10% Over 100 mmHg |
| Update Frequency | At each breath or every 10, 20, or 30 seconds |
| Warm-up Time | Approximately 20 seconds |
| Sample Flow Rate | 50 to 250 ml/min, user-adjustable. Standard value: 100 ml/min |
| Memory | 24 Hours (graphical and numerical trend on the screen) |
| Respiratory Rate Measurement | |
| Range | 3 to 150 breath/minute |
| Accuracy | ± 1% of the measured value or ± 1 breath/minute, whichever is greater |
| Memory | 24 Hours |
