PC-900 Pro Vital Signs Monitor
PC-900 Pro Vital Signs Monitor
Couldn't load pickup availability
- 3.5-inch colour display
- Rechargeable lithium battery
- Monitoring of vital signs and ECG data
- Alarms: audible, visual, nurse call
- Up to 12,000 NIBP measurements and 3,000 SpO2 measurements
PC-900 Pro Vital Signs Monitor PC-900 Pro

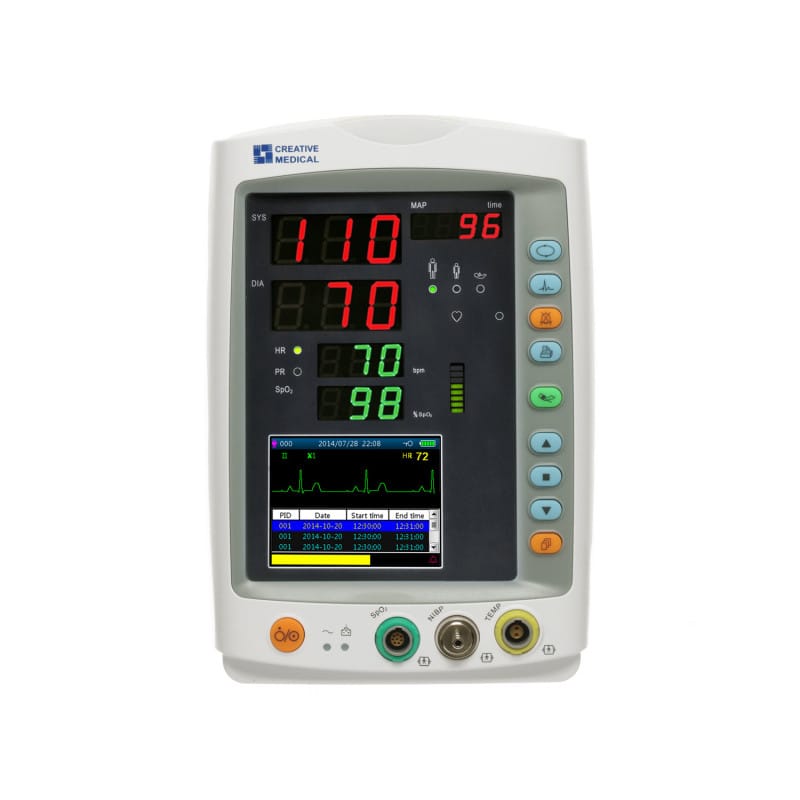

The PC-900 Pro Vital Signs Monitor from Lepu Medical is a powerful medical device featuring a high-resolution 3.5-inch colour display and a rechargeable lithium battery. This portable vital parameter monitor, equipped with a carrying handle, offers monitoring functions for SpO2, EKG, NIBP and Temperature. The alarm functions, both audible and visual, including a nurse call function, ensure rapid responses to critical situations.
Historical records can be displayed in various formats, including waveform, list or trend chart. The PC-900 Pro allows flexible configurations between different parameters and permits data export and software upgrades via a USB cable. With the capacity to store up to 12,000 NIBP measurements, 3,000 SpO2 measurements and event recordings, it is a reliable instrument for long-term monitoring.
Product Details
- PC-900 Pro Vital Signs Monitor
- High-resolution 3.5-inch colour display
- With rechargeable lithium battery
- Vital parameter monitor with carrying handle
- Parameters: SpO2, EKG, NIBP and Temperature
- Audible and visual alarm functions including nurse call
- Historical records can be displayed as waveform, list, or trend chart
- Flexible configurations between SpO2, NIBP, TEMP, and ECG
- Data export and software upgrades can be performed via USB cable
- Stores up to 12,000 NIBP measurements, 3,000 SpO2 measurements and event recordings
- Complies with Medical Device Class II
- Suitable for patients of all age groups (adults, children, newborns)
- Ideal for use in and outside the practice
Technical Specifications
| Display | 3.5-inch colour display |
| Dimensions (L x W x H) | 160 x 160 x 235 mm |
| Weight | 3.9 kg |
| Battery | Lithium battery (11.1 V / 4400 mAh) |
| Operating Conditions | Temperature: 5 - 40 °C Humidity: 30 - 80 % Air Pressure: 70 kPa - 106 kPa |
| Storage Conditions | Temperature: -20 - 60 °C Humidity: 10 - 95 % Air Pressure: 50.0 - 107.4 kPa |
| NIBP | |
| Measurement Method | Oscillometric measurement |
| Pneumatic Pressure Range | 0 - 300 mmHg |
| Pressure Measurement Accuracy | +3 mmHg |
| Manschette Pneumatic Pump Time | < 10 seconds |
| Average Measurement Time | < 90 seconds |
| Deflation Time | < 2 seconds |
| Overpressure Protection Limit | Adults: < 300 mmHg Children: < 24 mmHg Newborns: < 150 mmHg |
| SpO2 | |
| Probe | LED with dual wavelength |
| Wavelength | Red: 663 nm Infrared: 890 nm (optional) |
| Max. Optical Output Power | < 2 mW (max. average) |
| Measurement Range | 35 % - 100 % |
| Measurement Accuracy | 3 % for an SpO2 range of 70 - 100 % (according to ISO 80601-2-61) |
| Pulse Rate | |
| Measurement Range | 30 - 240 bpm |
| Measurement Accuracy | ± 2 bpm or ± 2 % |
| EKG | |
| Amplitude Input Signal Range | ± 0.5 - 5 mVp |
| Heart Rate Display Range | 15 - 350 bpm |
| Heart Rate Accuracy | ± 1% or ± 2 bpm |
| Noise Level | < 30 μVP-P |
| Heart Rate Alarm Delay | < 10 seconds |
