PAX Function Module P5-11 Rea

PAX Function Module P5-11 Rea

£38.68
£0.00 £38.68
Sale Sold out
Version
Product overview
  • To complement the PAX P5/11 Emergency Backpack
  • Easy to integrate thanks to magnet system
  • Loop with marking for quick assignment
  • Available in various versions
  • Different modules can be combined individually

PAX Funktionsmodul P5/11

The PAX P5/11 function module can be easily integrated and removed at any time thanks to the convenient magnet system inside the PAX P5/11 Emergency Backpack. They are made of the easy-care and durable material PAX-Tec and are available in a variety of designs. The different modules can be individually combined with each other according to need and, thanks to the loop with clear labelling, allow the consumables inside to be quickly assigned. The function modules help to ensure that the organization of the emergency backpack is particularly clear.


Please note that the contents of the function modules are not included in the scope of delivery and that these are only exemplary images.


Product Details

  • PAX Function Module P5/11
  • Compatible with the PAX P5/11 Emergency Backpack
  • Easy to integrate thanks to magnet system
  • Durable and easy-care material (PAX-Tec)
  • Smooth-running and robust zip
  • Loop with inscription for quick assignment
  • Increases organizational clarity
  • Particularly high-quality production
  • Available in various versions

Ordering Information

Function Module Application Dimensions (H x W x D) Weight
IO For holding drills & accessories 10 x 10 x 19 cm 0.18 kg
Diagnostics For holding e.g. dress scissors, blood pressure monitors, blood glucose meters and much more 10 x 22.5 x 15 cm 0.24 kg
Dressing To hold e.g. dressing packs, compresses, bandages and much more 8 x 35 x 12 cm 0.28 kg

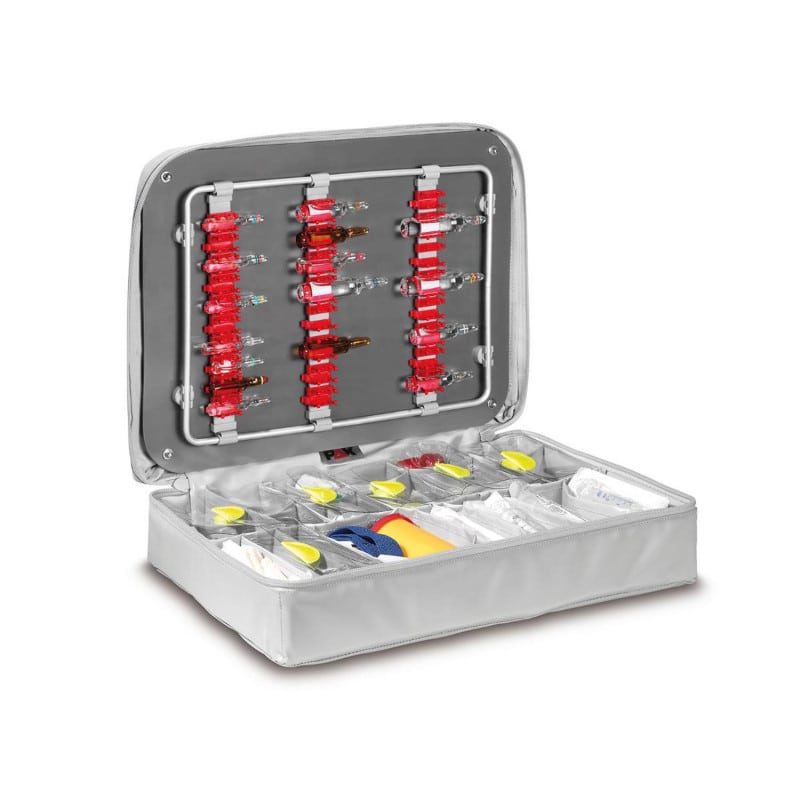

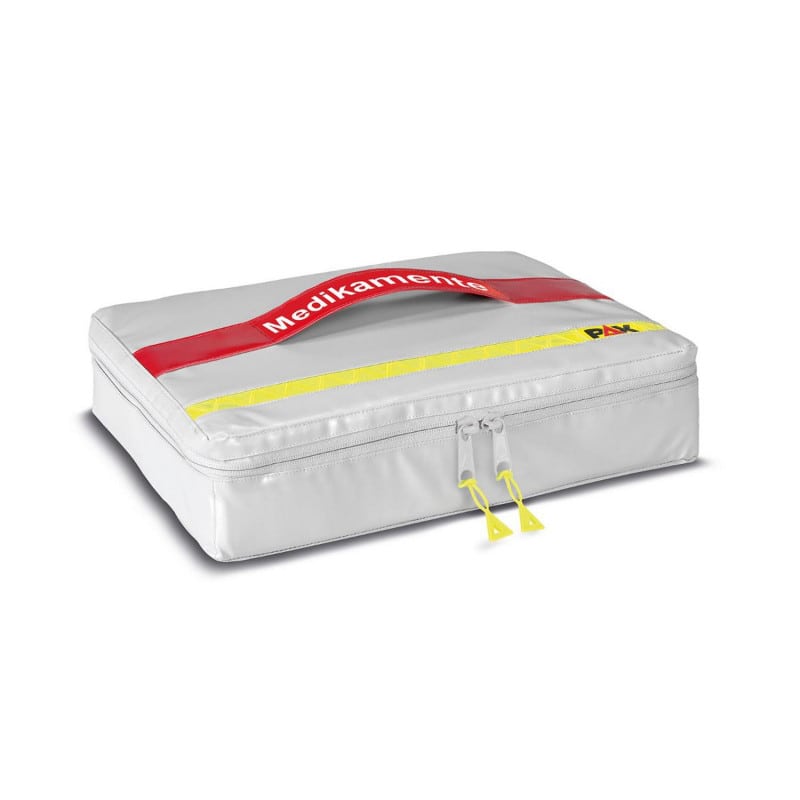

Medication For holding medicines and accessories (Delivery without ampoule rail + PCI conversion kit) 10 x 36 x 28 cm 0.82 kg
Rea For holding e.g. resuscitation drugs 10 x 14 x 13 cm 0.16 kg
Intubation For holding e.g. laryngeal tubes incl. blocker syringe, endotracheal tubes, laryngoscopes and much more 10 x 35 x 18 cm 0.41 kg
Access/Infusion For holding e.g. intravenous catheters, infusion systems, infusions and much more 10 x 27 x 18 cm 0.32 kg


PAX-Tec: Technical Data

Material Polyester fabric with TPU coating on one side (TPU = thermoplastic polyurethane)
Finish Coated on one side / laminated
Weight approx. 470 g/m2
Tensile Strength warp 250 daN / weft 220 daN
Tear Propagation warp 25 daN / 22 daN
Max. Application Temperature -30 °C / +70 °C
Waterproof > 1000 mm H2O
Intended Use As an outer material for professional use of emergency backpacks and bags.
