Orlvision Video Rhino-Laryngoscope RSX USB Interface (RSX-USB)

Orlvision Video Rhino-Laryngoscope RSX USB Interface (RSX-USB)

£11,884.48
£0.00 £11,884.48
Sale Sold out
Variant
Product overview
  • Ultra-compact
  • Integrated camera processor and high-performance LED illumination
  • Flexible and precise optics
  • Dust and waterproof
  • Made in Germany

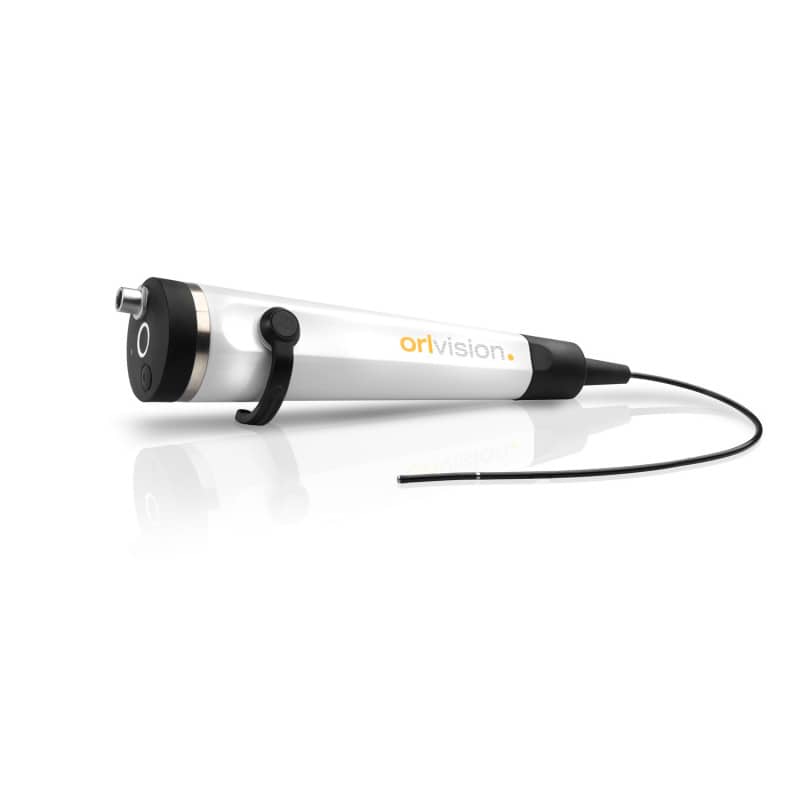

Orlvision Video Rhino-Laryngoscope RSX

The flexible Orlvision Video Rhino-Laryngoscope RSX is the world's first ultra-compact video endoscope for examining the nasopharynx. The lightweight handpiece has integrated high-performance LED illumination and an integrated camera processor. This ensures optimal illumination of the examination area and displays high-resolution images.


The attached lens of the RSX video rhino-laryngoscope allows a 90° angle of view, while the distal end of the insertion tube can be angled up and down to 130°. Captured images and videos can be evaluated and edited with the software included in the delivery.


Product Details

  • Orlvision Video-Rhino-Laryngoscope RSX
  • World's first ultra-compact video rhino-laryngoscope
  • Specially developed for ENT physicians
  • For examination of the nasopharynx
  • Integrated camera processor and high-performance LED illumination
  • Images and videos can be transferred to monitor/PC
  • Capture button and probe control directly on the handpiece
  • Features flexible and precise optics
  • Particularly handy and lightweight
  • Can be cleaned and disinfected at 65 °C (fully immersible)
  • Dust and waterproof
  • High-quality class 1 medical devices
  • Made in Germany
  • Accessories included

Specifications


 S-Video Connection (147650) USB (147651)  Paediatrics (USB) (147652)  HD (USB) (147653)
Image sensor CMOS 1/10'' image sensor CMOS 1/18''  image sensor CMOS 1/18''  image sensor HD CMOS  image sensor
Focus range 10 - 55 mm 10 - 55 mm 10 - 55 mm 10 - 50 mm
Angle of view 90° 90° 90° 90°
Insertion tube diameter 3.9 mm 3.9 mm 2.9 mm 3.9 mm
Probe control 130°/130° 130°/130° 130°/130° 130°/130°
Resolution 400 x 400 400 x 400 400 x 400 800 x 800
Working length 310 mm 310 mm 310 mm 310 mm
Total length 540 mm 540 mm 540 mm 540 mm
Power supply 5V DC/0,3A 5V DC/0,3A 5V DC/0,3A 5V DC/0,3A
Power max. 2.2 W max. 2.2 W max. 2.2 W max. 2.2 W
Interface S-Video/ Composite Video USB USB USB
Air pressure 950 - 1050 hPa 950 - 1050 hPa 950 - 1050 hPa 950 - 1050 hPa
Protection class IP 68 IP 68 IP 68 IP 68


Delivery Contents

  • Orlvision Video Rhino-Laryngoscope
  • Connecting Cable
  • Leak tester
  • OrlView software
  • Plug Cap Naso for 9-pole plug connection
  • Cover cap for pressure test connector
  • Instructions for use
