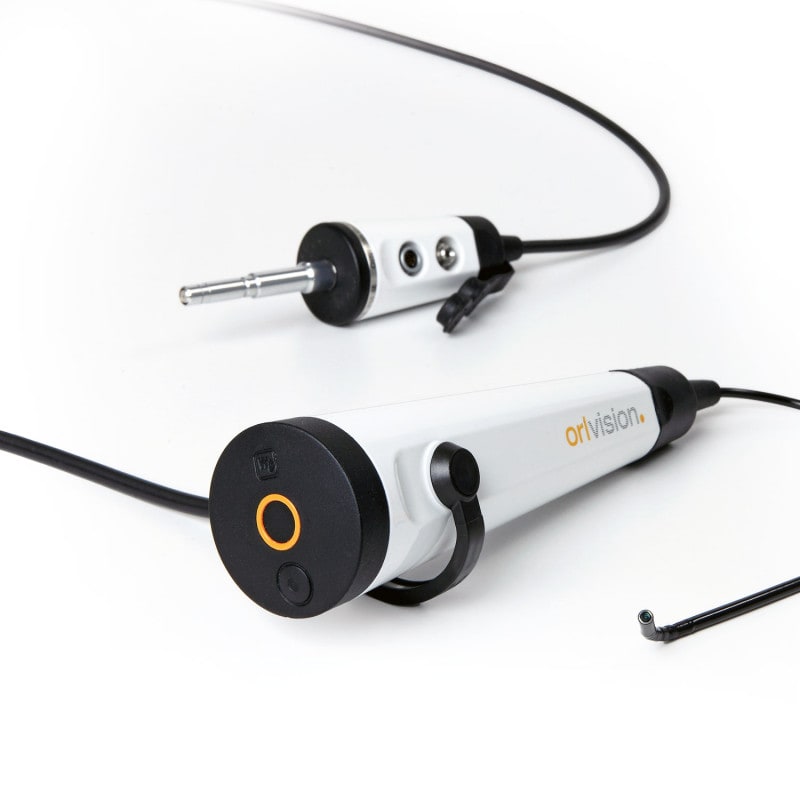

Orlvision Video Rhino-Laryngoscope RS1

• Ideal for image and video documentation
• For use with a stroboscope
• Integrated camera processor
• Can be cleaned and disinfected
• Made in Germany

Orlvision Video Rhino-Laryngoscope RS1

The flexible Orlvision Video-Rhino-Laryngoscope was specially developed for ENT doctors and is used for image and video documentation of examinations of the nose, nasal cavities, pharynx, larynx and nasopharynx. The integrated camera processor as well as the precision optics with integrated cold light illumination provide clear natural images. The images obtained can be displayed and stored on a high-resolution screen.

The attached lens of the Orlvision RS1 allows a viewing angle of 90°. In addition, the distal end of the insertion tube can be angled in a range of ± 130°, enabling particularly detailed examinations.

The Orlvision RS1 video rhino-laryngoscope can be quickly and easily connected to various light sources with the hepl of different adapters. The video endoscope has a white balance button and capture button directly on the handpiece to enable particularly easy operation.

Product Details

• Orlvision Video Rhino-Laryngoscope RS1
• Specially developed for ENT doctors
• Ideal for image and video documentation
• For use with a stroboscope
• Integrated camera processor
• Chip at the tip with precise optics
• Manual white balance
• White balance and record button directly on the handpiece
• Compatible with a variety of light sources via a variety of adapters
• Can be cleaned and disinfected at 65° (fully immersible)
• High quality class 1 medical device
• Dust and waterproof
• Particularly easy to use
• Made in Germany
• Accessories included

Specifications

• Image sensor: CCD image sensor
• Diameter insertion tube: 3.9 mm
• Probe control up/down: 130°/130°
• Angle of view: 90°
• Video format: NTSC/ PAL and NTSC
• Resolution: 320 x 240/500 x 582 and 510 x 492
• Working length: 310 mm
• Total length: 540 mm
• Illumination: Cold light source, fibre optic light guide
• Power supply: 100-240 V
• Power: max. 1.5 W
• Interface: Cinch video/ Y_C Video, Cinch
• Air pressure: 950 to 1050 hPa
• Protection class: IP 68

Contents

• Video rhino-laryngoscope RS1
• Connection cable for monitor and power supply unit
• Power supply unit
• Leak tester
• Cinch cable
• S-video cable
• ACMI adapter for connection to light source
• Plug Cap Naso for 9-pole plug connection
• Cover cap for pressure test connector
• Hard shell case
• Instructions for use
