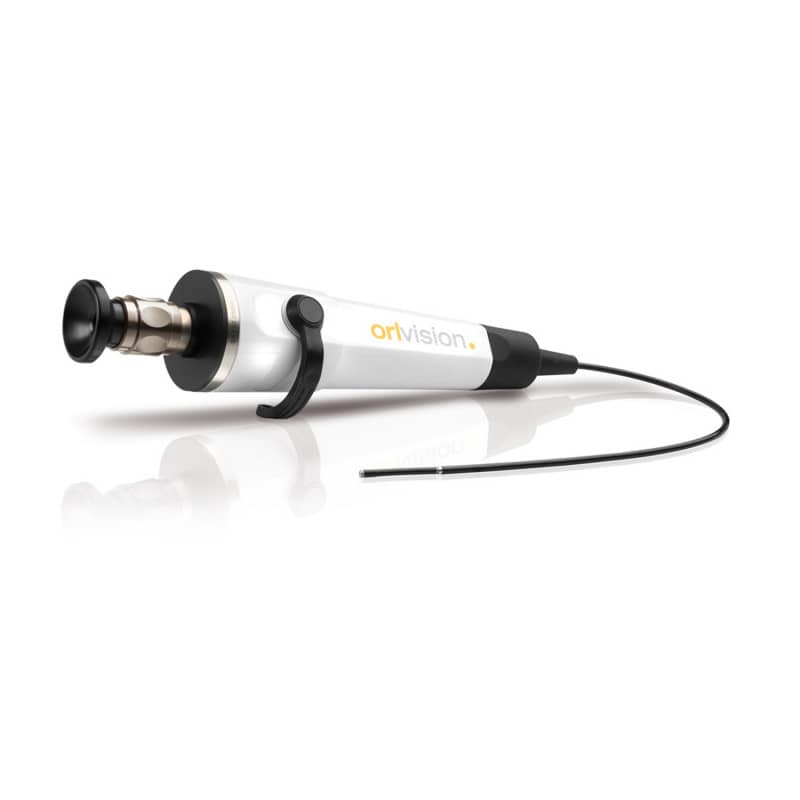

Orlvision Fibre Rhino Laryngoscope FS2

• Ideal for paediatrics
• Flexible fibre endoscope with eyepiece
• Optical focusing and imaging unit
• Sensitively controllable angulation of the optical tip
• Particularly simple and fast operation

Orlvision Fibre Rhino Laryngoscope FS2

The flexible Orlvision Fibre-Rhino-Laryngoscope FS2 is used for endoscopic examination of the nasopharynx. The fibre endoscope has an eyepiece with optical focusing and imaging unit. The fine-tunable focusing provides extremely sharp images.

The optical unit offers a field of view of 90°, while the sensitively controllable optical tip enables an up-and-down angle of 130°. An external light source provides optimal illumination of the examination area. This can be done either by means of the portable 5-watt light source, which is connected directly to the handpiece, or by connecting it to the corresponding light source via a light guide cable and the appropriate adapters, if necessary.

The Orlvision FS2 has an ergonomic design which ensures comfortable handling as well as particularly simple and fast operation. For hygienic use, the endoscope can be cleaned, disinfected by immersion and even reprocessed by gas sterilisation.

Product Details

• Orlvision Fibre-Rhino Laryngoscope FS2
• Specially developed for ENT physicians
• For endoscopic examination of the nasopharynx
• Flexible fibre endoscope with eyepiece
• Ideal for paediatrics
• Optical focusing and imaging unit
• Fine-tunable focusing
• Excellent image quality
• Sensitively controllable angulation of the optical tip
• Portable 5-watt light source
• Ergonomic design for comfortable handling
• Particularly simple and fast operation
• Can be cleaned, disinfected and sterilised
• Compatible with all light sources and camera systems (via light cable and adapter)
• High-quality class 1 medical device
• Dust and waterproof
• Made in Germany

Specifications

• Diameter insertion cable: 2.9 mm
• Angle of view: 90 °
• Angulation up/down: 130°/130°
• Focus range: 3 - 50 mm
• Working length: 300 mm
• Total length: 540 mm
• Air pressure: 950 - 1050 hPa
• Weight: 380 g
• Protection class: IP 68
