Master Palm 3
Master Palm 3
Couldn't load pickup availability
- With the advanced Nellcor OxiMax technology
- Practical monitoring function with programmable alarm
- Precise display of the plethysmography curve
- Large selection of interchangeable sensors
- With memory function for complete documentation
Master Palm 3 Pulse Oximeter
Compact and reliable handheld pulse oximeter for the accurate monitoring of oxygen saturation (SpO₂) and pulse rate across all patient groups – featuring automatic screen rotation, customisable alarm settings and a wide range of interchangeable sensors for flexible use in clinical environments.
Product Details

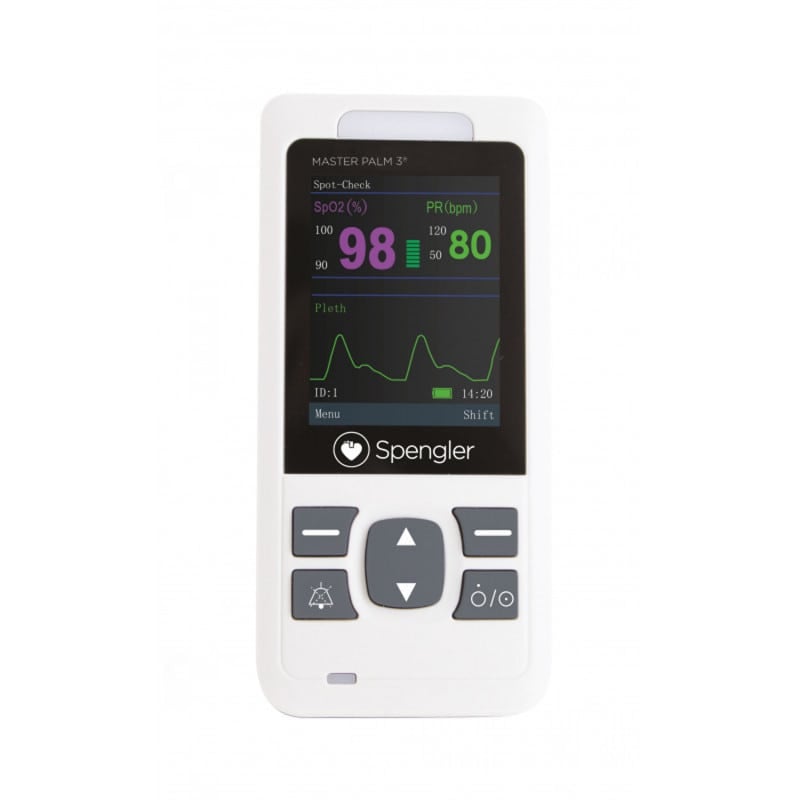

- Master Palm 3 handheld pulse oximeter from Spengler
- Compact, durable, and easy to use
- Designed for precise measurement of SpO₂ and heart rate
- Equipped with advanced Nellcor OxiMax™ technology

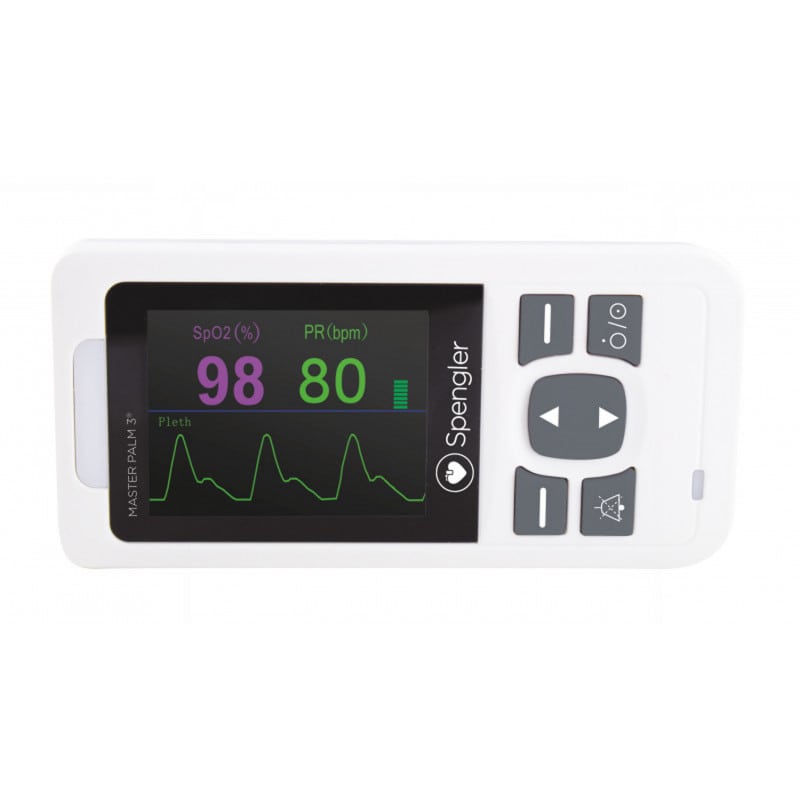

- Automatic screen rotation for optimal visibility
- Two user-selectable display modes
- Continuous SpO₂ monitoring with programmable alarms
- Customisable settings for alarm thresholds, display, volume and system configuration
- Audible alerts can be muted for up to 120 seconds
- Accurate visual display of the plethysmographic waveform
- Compatible with a broad selection of SpO₂ sensors
- Delivers high accuracy and excellent readability
- Memory function supports continuous documentation
- Also suitable as a bedside or mobile SpO₂ monitor
- Extended battery life for uninterrupted operation
- Designed for adult, paediatric and neonatal patients
- 2-year manufacturer warranty included
Fast and Accurate SpO₂ Monitoring for All Age Groups
The Spengler Master Palm 3 is a compact yet high-performance handheld pulse oximeter developed for the challenges of daily medical work. With automatic screen orientation and dual intuitive display modes, it ensures optimal usability in both clinical and field settings. Its customisable alarm system and compatibility with a wide range of SpO₂ sensors for adults, children and newborns make it an ideal solution for flexible, patient-centred care.
The integrated plethysmographic waveform display allows detailed insight into the patient's pulse pattern, while the built-in memory supports uninterrupted monitoring and documentation. Whether for routine checks, emergency response, or continuous tracking, the Master Palm 3 offers reliable SpO₂ readings, a user-friendly interface and enhanced diagnostic accuracy – all in one compact device.
Key Features
- Powered by high-performance Nellcor OxiMax technology
- Automatically rotating HD display
- Individually configurable alarm settings
- Special plethysmographic waveform display
- Wide range of compatible sensors
Nellcor OxiMax Technology at a Glance
The advanced OxiMax™ technology enables fast, accurate and reliable oxygen saturation measurement – for all patient groups, from newborns to adults. Thanks to its comprehensive monitoring features, the system is suitable for clinically challenging environments and can be flexibly integrated into various care settings. Intelligent sensor alerts support correct application, while the sensor event report ensures complete alarm documentation. The system is compatible with Nellcor™ SpO₂ sensors from the OxiMax™ product line.
Technical Specifications
| Display | 2.4" TFT display; resolution: 320 x 240 pixels |
| Display Modes | Mode 1: Numbers and SpO₂ Mode 2: Pulse, plethysmographic waveform, SpO₂ value, and SpO₂ curve |
| SpO₂ | Measurement range: 0–100% Resolution: 1% |
| Heart Rate | Measurement range: 25–250 bpm Resolution: 1 bpm |
| Pulse Intensity | Displayed as a bar graph |
| Wavelength | Red light: 660 nm Infrared: 905 nm Power: <15 nW |
| Power Supply | 3 AA LR06 batteries |
| Operating Time | >14 hours of continuous use with SpO₂ enabled, screen at minimum brightness, alarms off, at 25 °C ambient temperature |
| Operating Conditions | Temperature: 5–40 °C Humidity: 15–85% Air pressure: 700–1060 hPa |
| Storage Conditions | Temperature: -20 to +55 °C Humidity: 10–93% Air pressure: 500–1060 hPa |
| Dimensions | 58.5 x 123 x 28 mm |
| Weight | <200 g (excluding batteries) |
Scope of Delivery
- 1x Spengler Master Palm 3 Pulse Oximeter

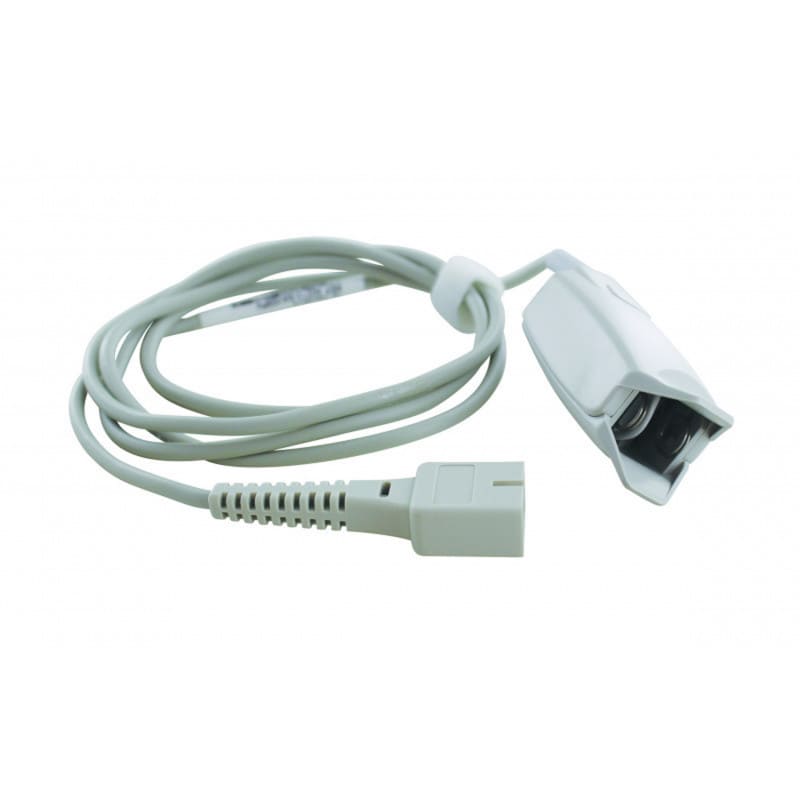

- 1x SpO₂ sensor for adults
- 3x AA LR06 batteries
- 1x User manual
Order Your Master Palm 3 Pulse Oximeter Today
Buy now to streamline your clinical workflow with precise SpO₂ and pulse monitoring, programmable alarms and versatile sensor compatibility—delivering reliable diagnostics and superior patient care.
