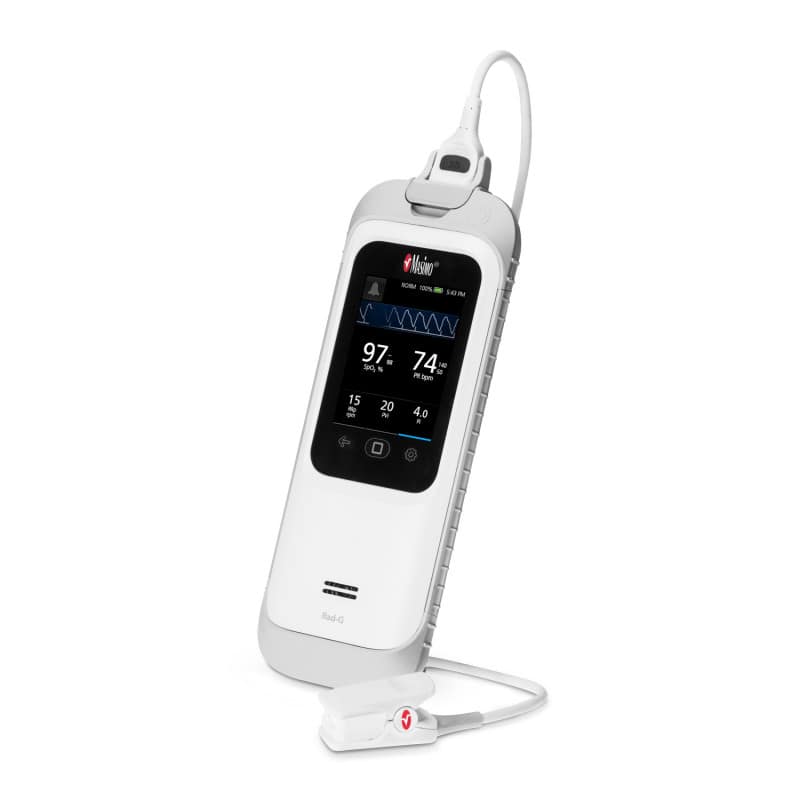

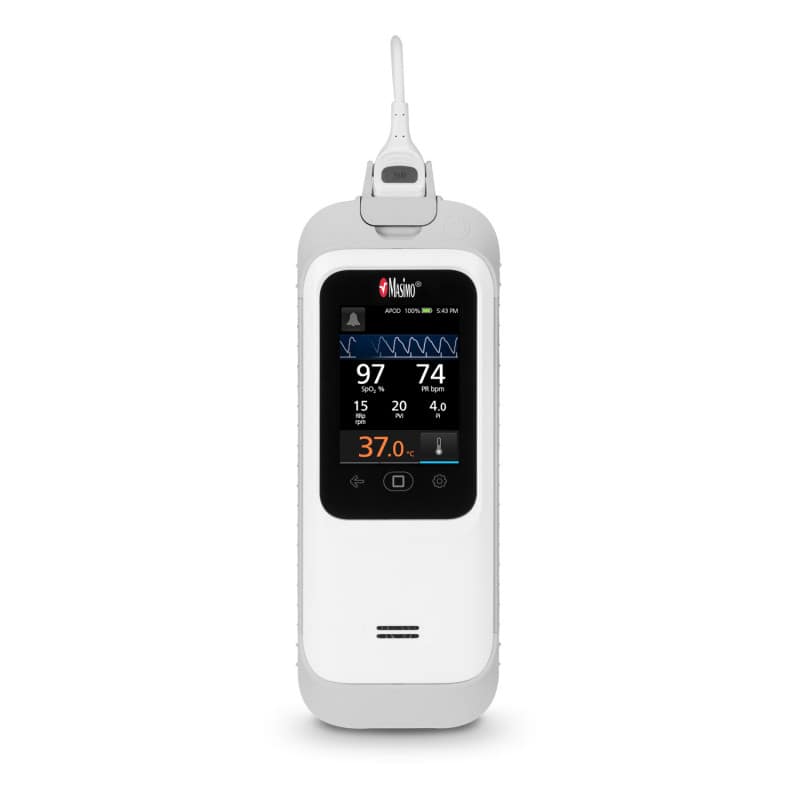

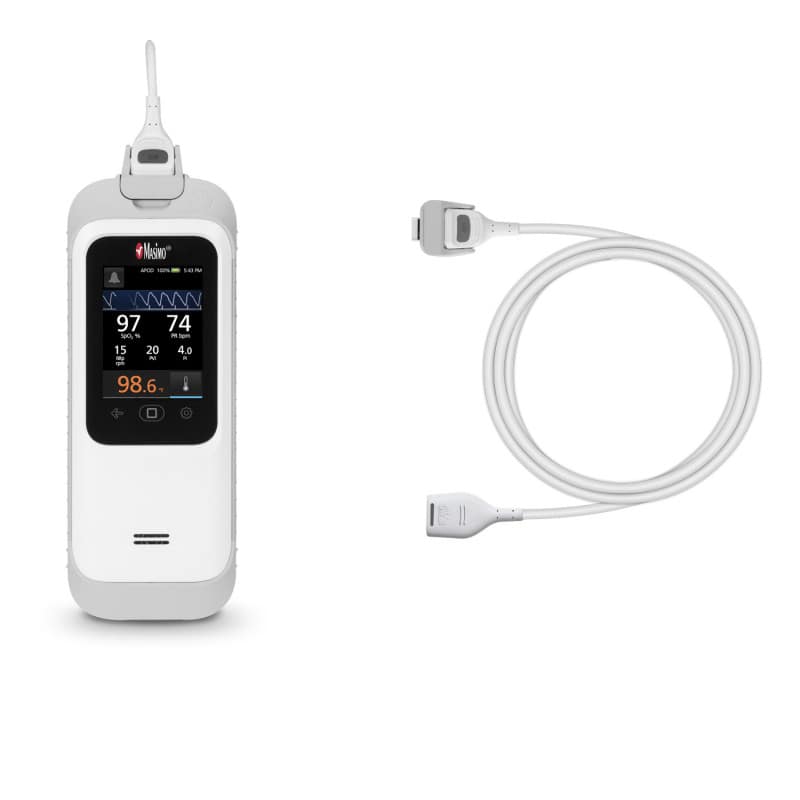

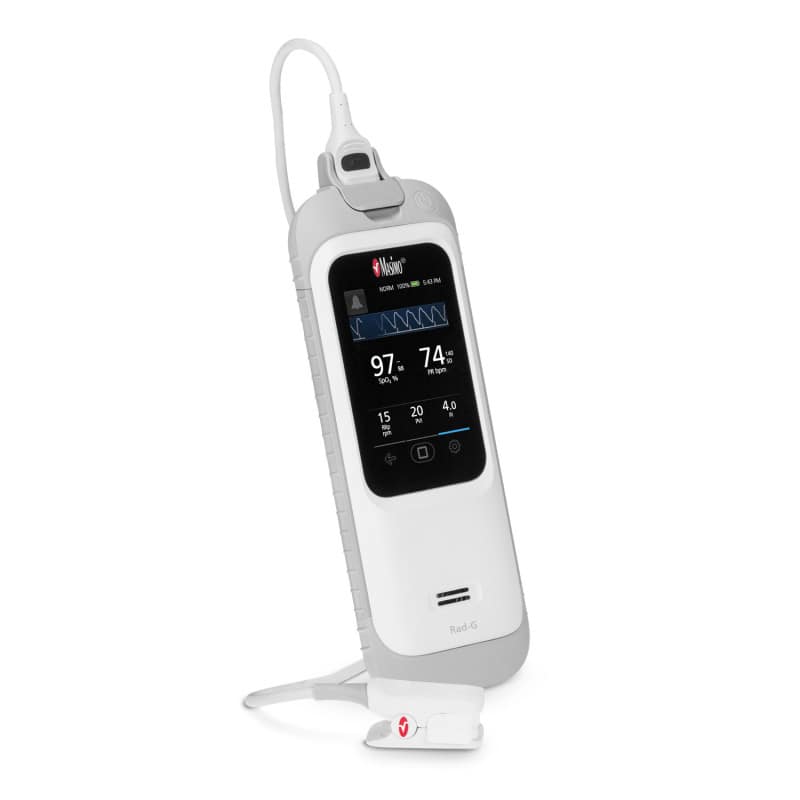

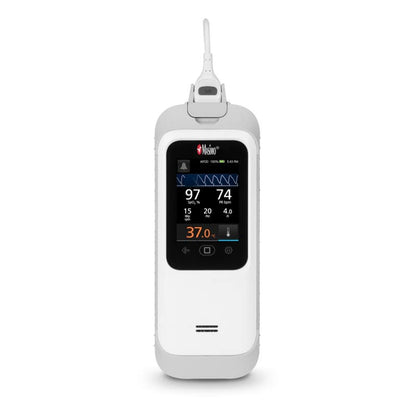

Masimo Rad-G™ Pulse Oximeter

• Handheld pulse oximeter with 2.8 inch screen
• Configurable alarm limits
• Drop resistant up to 2 metres
• Lightweight and slim design
• Up to 24 hours battery life

Masimo Rad-G™ Pulse Oximeter

The Masimo Rad-G™ Pulse Oximeter is a portable, extra lightweight handheld device for rapid patient assessment, capable of withstanding falls from up to 2 meters. With the proven Masimo SET® Pulse Oximetry Technology, reliable readings for quick patient assessment are provided, suitable for environments such as hospitals, home visits and medical practices. The included sensor allows for the measurement of parameters including pulse rate, oxygen saturation, perfusion index and respiratory rate.

The measured values including Pleth waveform can be easily read on the large display. Alarms, indicating changes in patient status, can be configured individually. Additionally, the rechargeable internal battery allows for operation for up to 24 hours.

Product Details

• Masimo Rad-G™ Pulse Oximeter
• Portable handheld pulse oximeter
• With clinically proven Masimo SET® Measure-through Motion and Low Perfusion™ pulse oximetry technology
• For spot-check measurement in infants, children, and adults
• Also suitable for continuous monitoring
• With large 2.8" touch display (Diagonal 7.1 cm)
• Easy menu navigation
• SpO2 measurement range: 70 - 100%
• Pulse rate measurement range: 25 - 240 beats/min
• Respiration rate measurement range: 4 - 70 breaths/min
• Durable outer casing withstands falls from up to 2 meters
• Sleek design and lightweight
• Internal rechargeable lithium-ion battery for up to 24 hours of operation
• Data storage: 96 hours
• Configurable alarm management
• Visual and auditory alarms
• Display of Pleth waveform
• 10-year usable lifespan
• Dimensions: 7.4 x 19.8 x 2.5 cm (W x L x D)
• Weight: 270 g
• Delivery including adult finger sensor and user manual

Measurable Parameters

• Oxygen Saturation (SpO2)
• Pulse Rate (PR)
• Perfusion Index (Pi)
• Pleth Variability Index (PVi)
• Respiration Rate (RRp)
