M12 Patient Monitor
M12 Patient Monitor
Couldn't load pickup availability
- Records ECG, HF, RESP, TEMP, SpO2, PF, CO2, IBP and NIBP
- Capacitive touchscreen with HD visualization
- Features Early Warning Score and Arrhythmia Detection
- Includes Glasgow Coma Scale
- Meets all high clinical requirements
M12 Patient Monitor

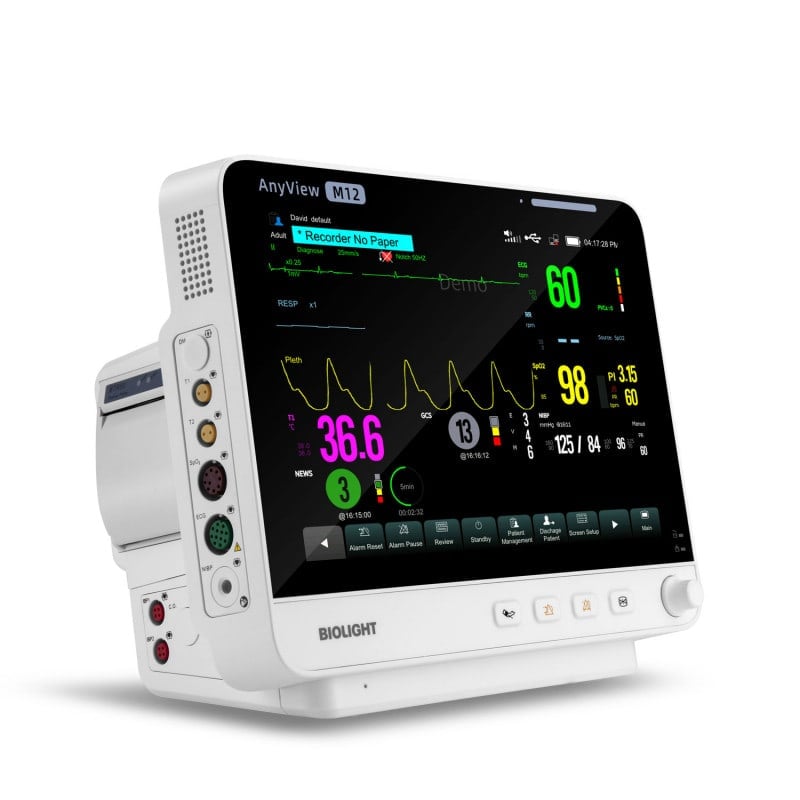

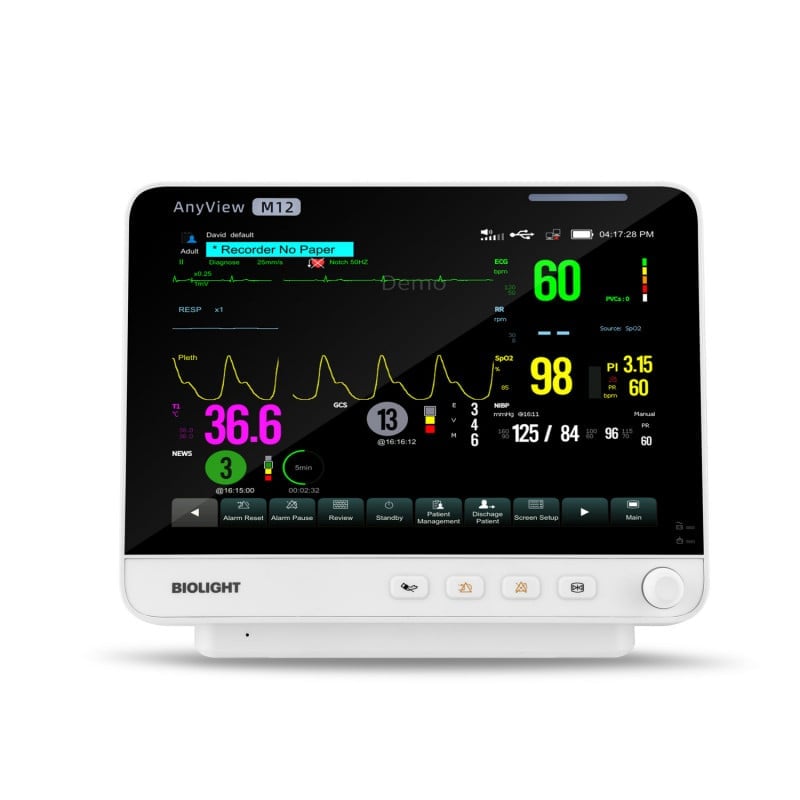

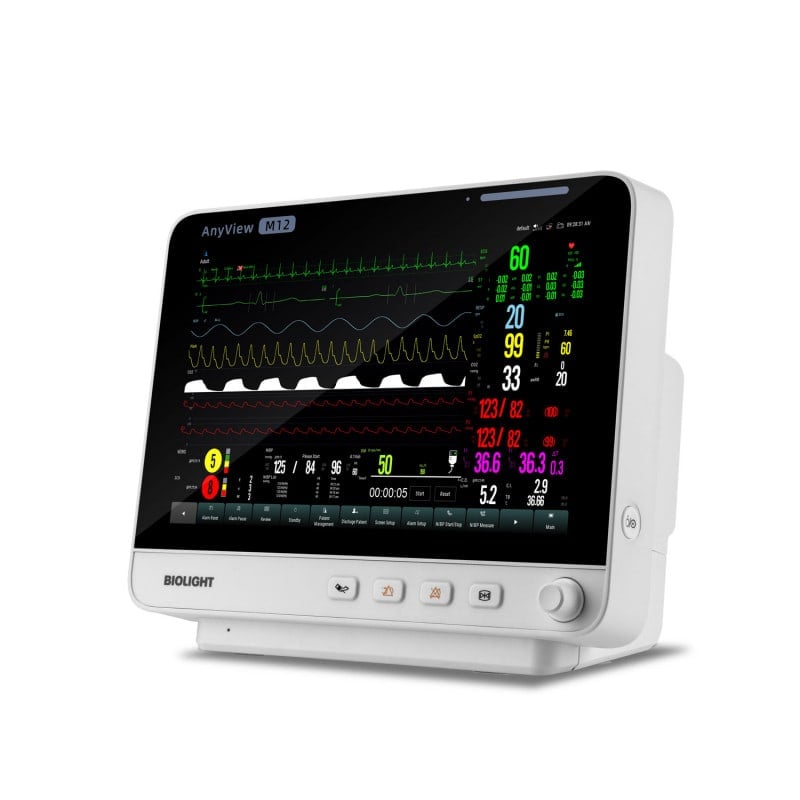

The M12 Patient Monitor from Biolight features a compact and ergonomic design that allows for comprehensive monitoring of ECG, heart rate (HR), respiratory rate (RESP), temperature (TEMP), oxygen saturation (SpO2), pulse rate (PR), invasive blood pressure (IBP), carbon dioxide (CO2) and non-invasive blood pressure (NIBP). With its capacitive HD touchscreen and modern software architecture, the device offers user-friendly operation and features quick-access buttons for NIBP start/stop, alarm pauses, and alarm resets.
The concealed handle allows easy transport, while the fanless design and seamless casing reduce cross-contamination risks and simplify cleaning. The integrated Early Warning Score (EWS) helps spot critical changes in vital signs early, allowing timely intervention.
The Glasgow Coma Scale (GCS) assesses a patient's level of consciousness, while Pulse Pressure Variability (PPV) provides valuable insights into their volume requirements. With a battery life of up to 8 hours and an optional wall mount or trolley, the M12 meets all requirements for flexible use in hospitals and clinics.
Product Details
- M12 Patient Monitor from Biolight
- For monitoring ECG, HR, RESP, TEMP, SpO2, PR, CO2, IBP and NIBP
- Compact and ergonomic design
- Facilitates observation and operation
- Intuitive and easy to operate using gestures
- Convenient quick-test buttons for start/stop, alarm reset, alarm pause, and freeze
- Ergonomic knob operation
- Easy cleaning due to seamless casing
- Concealed handle for convenient transport
- Capacitive touchscreen with HD visualisation
- Modern software architecture
- Utilises the latest premium technologies
- Physiological assessment system for patient evaluation
- Early Warning Score for critical changes in vital signs
- Enables early intervention in critical events
- Includes Glasgow Coma Scale
- Reliably assesses the patient's level of consciousness
- Can measure respiratory rate alongside SpO2
- Facilitates early detection of deteriorating conditions
- PPV (pulse pressure variability) as a reflection of cardiopulmonary interactions
- Assists in assessing patients' volume requirements
- Enhances workflow efficiency
- Meets all high clinical standards
- Automatic adjustment of brightness based on ambient light
- Low contamination risk due to fanless design
- Long battery life of up to 8 hours
- Integrated accessory box
- Wall mount or trolley optionally available
Technical Specifications
| Dimensions | 189 x 320 x 262 mm |
| Weight | < 4 kg |
| Display | Colour TFT LCD |
| Display Size (diagonal) | 12.1" |
| Battery | Rechargeable lithium-ion battery |
| Operating Time | > 240/480 minutes |
| Charging Time | < 8/12 hours |
| Alarm Events | 3000 groups and corresponding waveforms |
| Trend | 1800 hours, minimum resolution of 10 minutes |
| Trend Event | 15 minutes, minimum resolution of 1 minute |
| ARR Event | 6 hours, minimum resolution of 5 seconds |
| NIBP | 3000 groups and corresponding waveforms |
| Holographic Waveforms | 72 hours |
| Interfaces | USB, RJ45, WLAN, VGA, multifunction port |
| ECG | 3-channel: I, II, III 5-channel: I, II, III, aVR, aVL, aVF, Vx 6-channel: I, II, III, aVR, aVL, aVF, Va, Vb |
| Heart Rate (HR) | Adults: 10-300 bpm Children: 10-350 bpm |
| Respiratory Rate (RESP) | 0-150 rpm |
| Non-invasive Blood Pressure Measurement (NIBP) | Automatic, oscillometric |
| Pulse Oxygen Saturation (SpO2) | 0-100% |
| Temperature (TEMP) | 0-50 °C |
| Invasive Blood Pressure (IBP) | -50 to +360 mmHg |
| Carbon Dioxide (CO2) | 0-25% or 0-19.7%, depending on the sensor |
