HeartSine® samaritan® PAD 500P

• Semi-automatic AED with integrated CPR Advisor™
• Allows continuous ECG and ICG analysis
• Data memory for 90 minutes of event documentation
• Minimal operating costs thanks to battery electrode cassette
• Available in English or German language versions

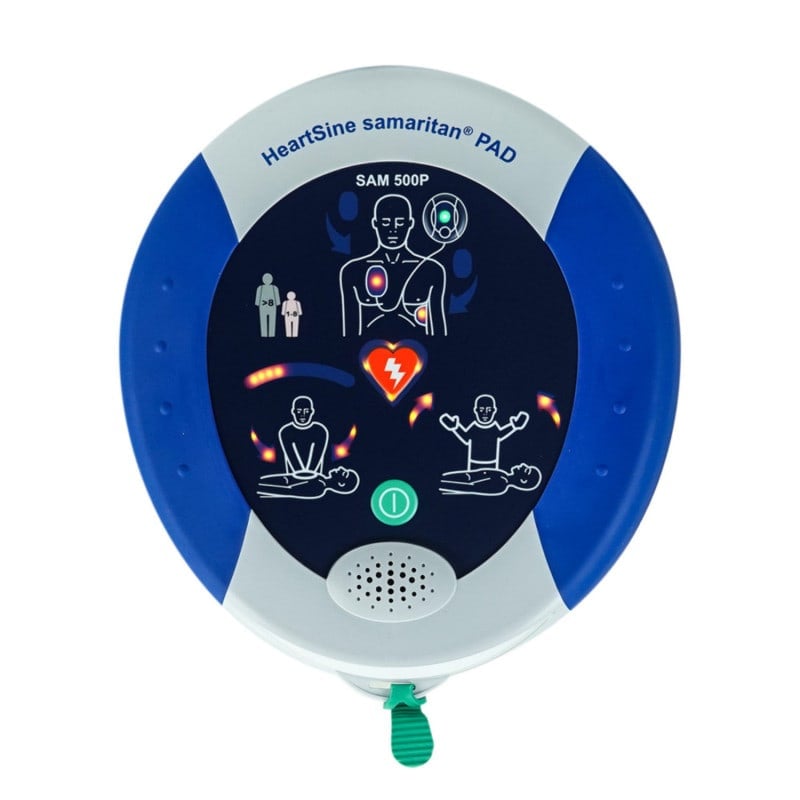

HeartSine® samaritan® PAD 500P

The HeartSine® samaritan® PAD 500P is an advanced semi-automatic AED with an integrated CPR Advisor™. It provides real-time CPR feedback via voice prompts and visual display, ensuring effective chest compressions. The defibrillator is equipped with a continuous ECG and ICG analysis function, along with artifact and disconnection detection. It features a simple two-button operation and manual shock delivery upon prompt.

The AED is compact, lightweight and easy to transport. Its robust build, complete with a dust and splash-proof casing, makes it ideal for use in challenging weather conditions. This highly reliable device is exceptionally easy to maintain, featuring just one expiry date thanks to the innovative PAD-PAK which contains both the electrode pads and the battery.

Product Details

• HeartSine® samaritan® PAD 500P
• Semi-automatic AED with integrated CPR Advisor
• Integrated real-time CPR feedback and metronome
• Provides audiovisual feedback on the strength & rate of chest compressions
• Supports the efficient and correct performance of CPR measures
• Allows continuous ECG and ICG analysis
• With artefact and disconnection detection
• Integrated data memory for up to 90 minutes of event documentation
• Easy and intuitive handling thanks to simple 2-button operation
• Manual shock delivery after prompting and pressing the shock button
• With patient-friendly, biphasic SCOPE™* technology
• Max. Shock energy of 200 J for adults & children
• Max. Shock energy of 50 J for infants
• Shock energy particularly effective but gentle on the heart muscle
• Enables quick action and rapid analysis in emergency situations
• Compact and lightweight design allows flexible transport
• Dust, splash and splash-proof housing (IP56)
• Highly visible LED standby indicator and self-test function
• Designed for private and commercial use
• Also developed for use in poor weather conditions

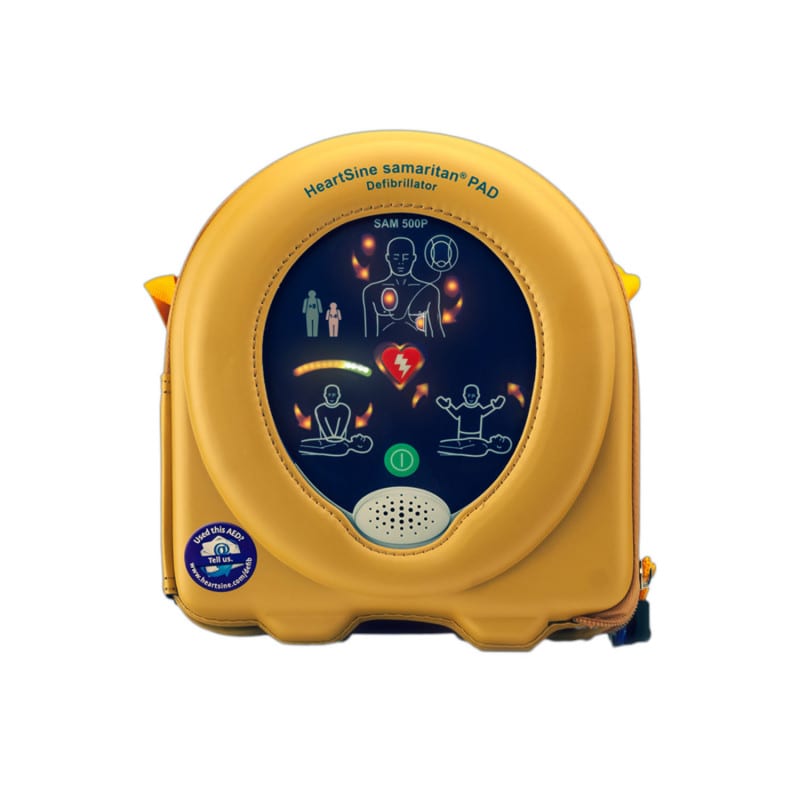

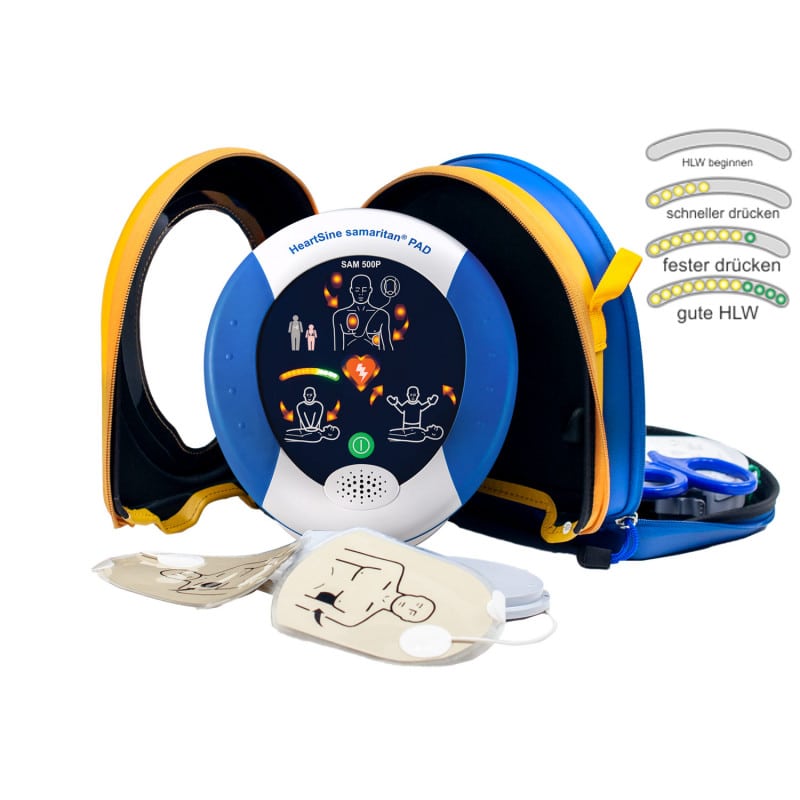

• Includes electrodes, battery and a multifunctional carry case
• Carry case can also be used as a head support during resuscitation
• Minimal operating costs thanks to combined battery-electrode cassette (4-year shelf life)
• Particularly easy to change consumables
• Sustainable thanks to long service life, reduced waste and recyclable materials
• Maintenance-free defibrillator is considered a more environmentally friendly alternative
• Audiovisual alarm in the event of a technical defect, low battery and much more
• CE 0123, IEC 2019, MDR-certified, aviation & mobility approval (ETSO)
• Manufacturer warranty: 8 years
• Optionally available in German or English language version

SCOPE™ Biphasic Output Waveform

Biphasic Waveforms

• Enable successful defibrillation even at low energy levels
• Allow waveform adjustment based on patient impedance
• Three main waveform variables for each energy level: voltage, slope, and duration of each phase

SCOPE Waveform

• Proprietary biphasic low-energy waveform
• Adjustment of all three variables for all possible impedances within the operational range as energy level increases
• Optimized effectiveness of the HeartSine® samaritan® PAD
• Allows shock delivery across a wide impedance range (20-230 Ohms) without significant energy loss

Technical Specifications

*Self-Compensating Output Pulse Envelope
