COMEN CVL Video Laryngoscope Adult (standard)
COMEN CVL Video Laryngoscope Adult (standard)
Couldn't load pickup availability
- High-resolution images of up to 1 megapixel
- Display can be rotated vertically/horizontally
- High illumination of 500 lux
- Practical video and photo functions
- With wide-angle field of view

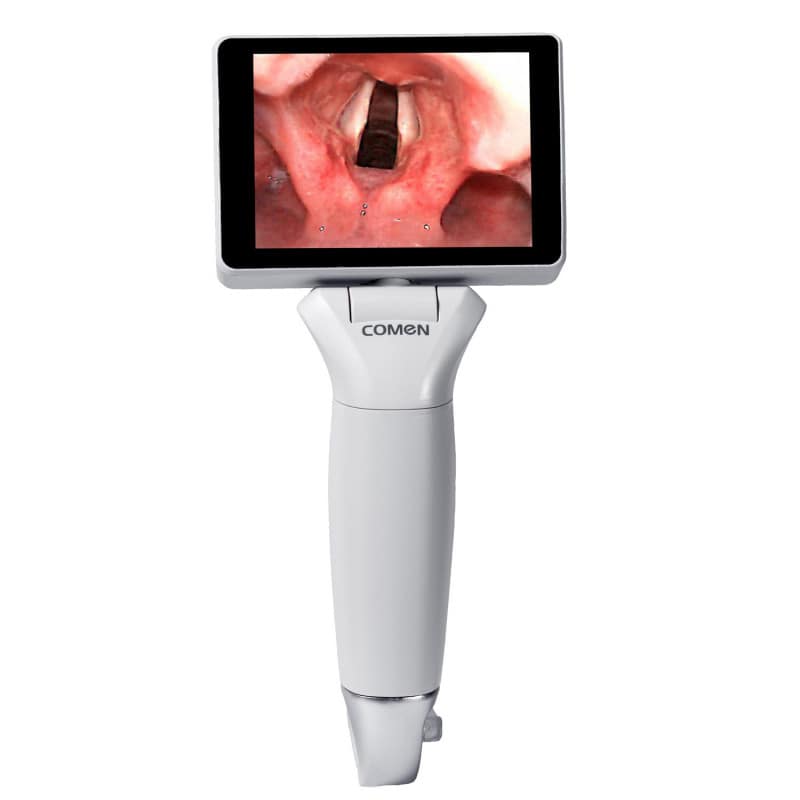

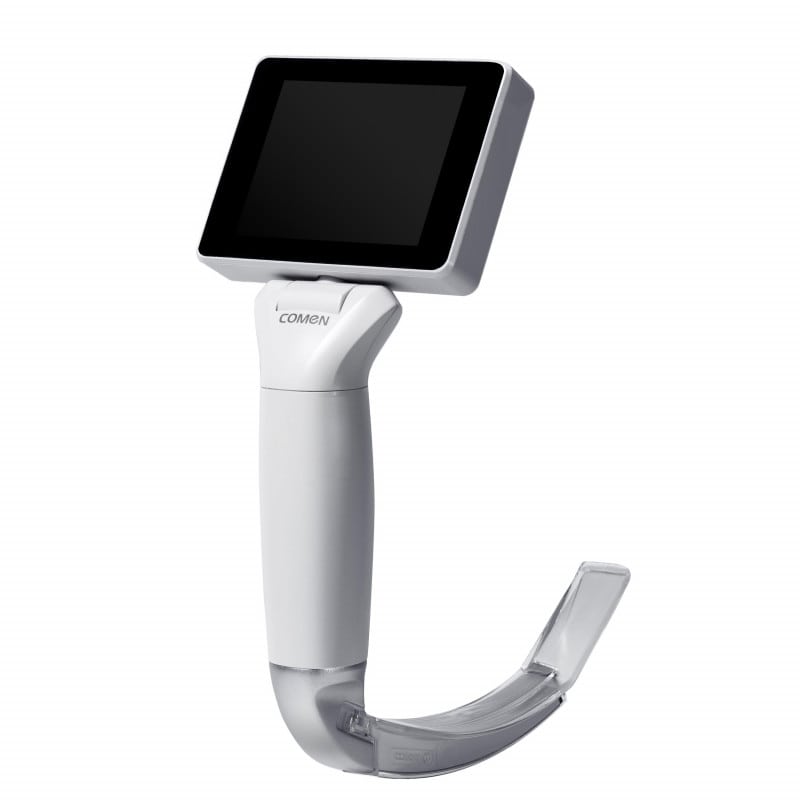

COMEN CVL Video Laryngoscope
The ergonomic COMEN CVL Video Laryngoscope is specifically designed for safe intubation in both children and adults, providing its user with high-resolution images on the large display. It stands out with high colour accuracy and an efficient illumination intensity of 500 Lux. The intubation process can be easily recorded with the convenient photo and video functions.
A special coating prevents the fogging of the camera lens. The digital laryngoscope can rotate freely without blind spots. For individual adaptation to the treatment situation, the screen can be rotated vertically by 270° and horizontally by 130°. The Video Laryngoscope from the CVL series is available in different variants and can be equipped with separately available disposable blades in different shapes and sizes.
Product Details
- COMEN CVL Video Laryngoscope
- For safe intubation during emergencies or anesthesia
- Provides high-resolution images on the large display (up to 1 megapixel)
- High color accuracy thanks to improved technologies
- Cold light with high illumination intensity of 500 Lux
- Easy recording of intubation with the photo and video function
- Special coating prevents fogging of the camera
- Ergonomic handle facilitates secure handling
- Offers the user a wide-angle field of view
- Fully rotatable without blind spots
- Screen can be rotated vertically by 270° and horizontally by 130°
- Rechargeable lithium battery allows continuous operation for over 2 hours
- Low energy consumption increases application time
- Automatically enters standby mode after 5 minutes
- Automatic shutdown after 10 minutes of inactivity

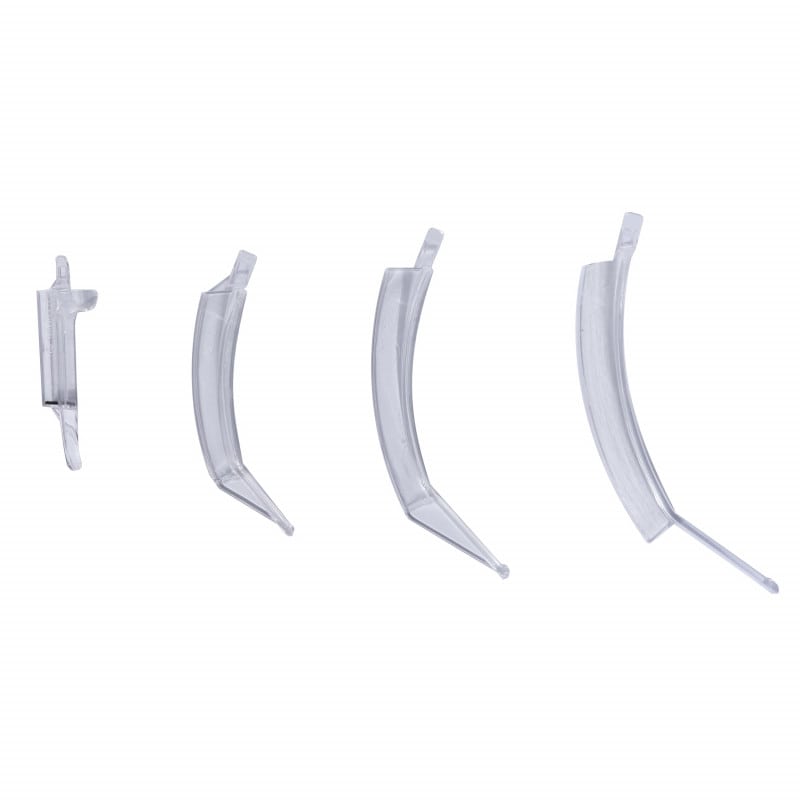

- Different variants and blades available
- Particularly hygienic application thanks to disposable blades
- Available for children or adults
Technical Specifications
| Children | Adults (standard) | Adults (large) | |
| Dimensions | 85 x 199 x 93 mm | 85 x 199 x 111 mm | 58 x 201 x 125 mm |
| Weight | 240 g | 250 g | 260 g |
| General Specifications | |||
| Display | Medical TFT-LCD touchscreen | ||
| Display Size | 3 inches | ||
| Resolution | 640 x 480 | ||
| File Format | jpg | ||
| Video Format | mp4 | ||
| Color Temperature | ≥5000K | ||
| Operating Temperature | -5 to +40 °C | ||
| Operating Humidity | 10-85% (non-condensing) | ||
| Data Storage | 8G SD - 30,000 jpg or 4h mp4 16G SD - 60,000 jpg or 8h mp4 32G SD - 120,000 jpg or 16h mp4 |
||
| Connections | 1x USB | ||
Application Areas
- Anesthesia
- Emergency Departments
- Intensive Care Units
- Emergency Centers
