Bistos BT-740 Monitor Standard model without printer

• With 8.4” colour touchscreen display
• To monitor ECG, SpO2, temp and resp
• With USB connector and integrated Li-ion battery
• Available with various display designs
• Particularly quiet operation

Bistos BT-740 Monitor

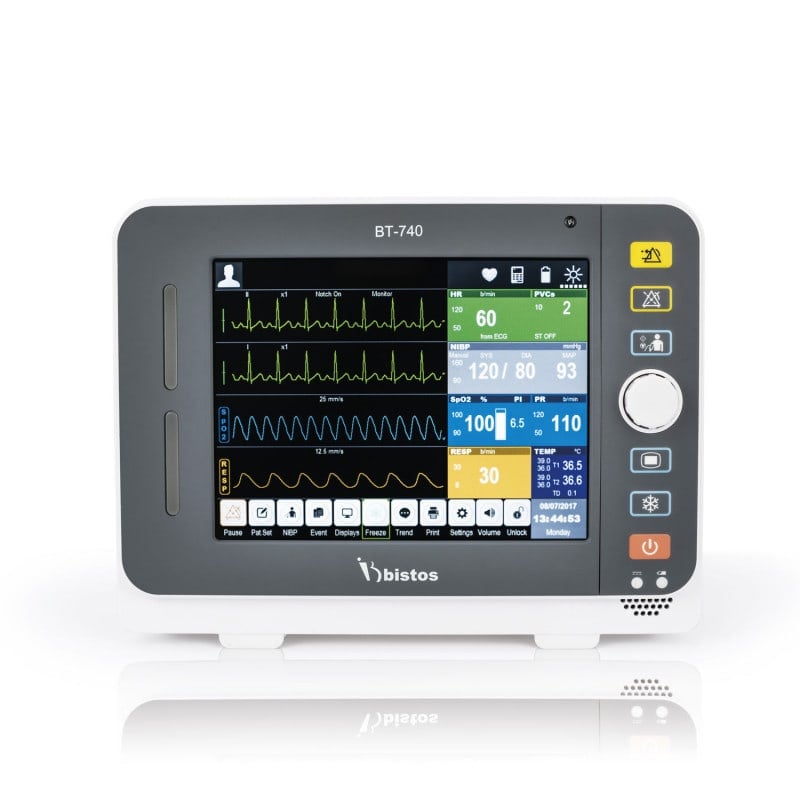

The Bistos BT-740 monitor can be used to monitor ECG, oxygen saturation, blood pressure, body temperature and breathing rate in adults, children and babies. The 8.4" colour touchscreen display allows for an easy and intuitive operation of the patient monitor, while the design guarantees patient comfort. The Bistos BT-740 is particularly energy-efficient and can be continuously used for up to 6 hours with one battery charge.

The BT-740 surveillance monitor is optionally available with or without a printer.

Product Details

• Bistos BT-740 monitor
• Patient monitor with 8.4" colour touchscreen display
• To monitor ECG, SpO2, NIBP, temperature and breathing rate
• Low energy consumption
• Fan-free design for quiet operation
• Precise SpO2 values, even during movement or low perfusion index
• Perfusion index display
• Pitch tone variation for the pulse rate
• USB connector for updates and data transfers to the PC
• More than 6 hours of continuous use with one battery charge
• Different display designs can be chosen
• Optionally with a printer

Technical Details

• Measurement range SpO2: 0-100%
• Measurement range pulse rate: 25-250 beats/minute
• Measurement method NIBP: oscillometric (manual/Auto/STAT)
• Measurement range temperature: 0-50°C
• Lithium-ion battery
• Charging time: ca. 4 hours

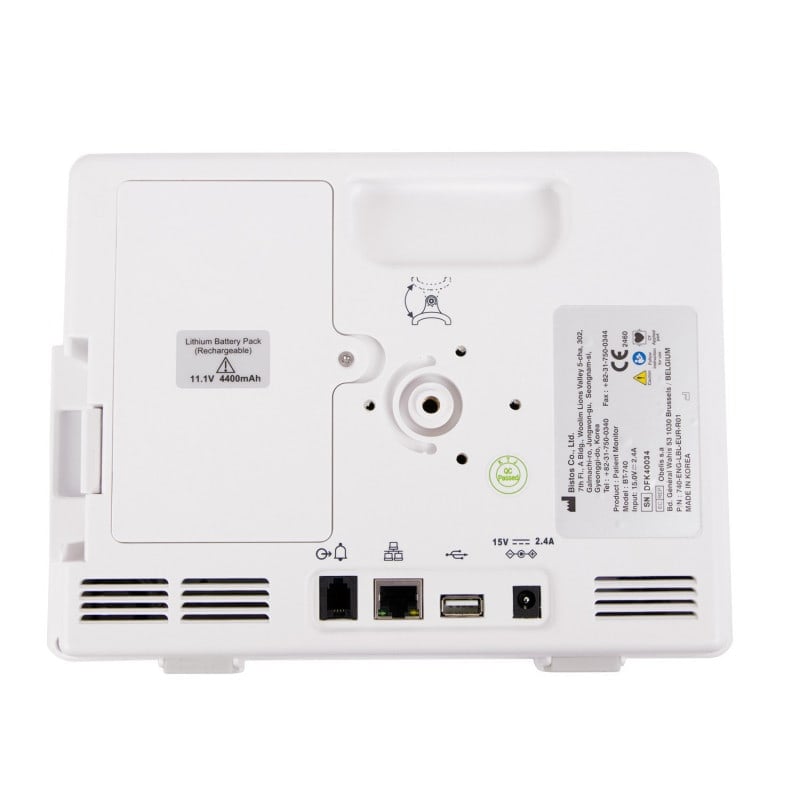

• Connectors: RJ45, USB
• 2 year warranty

Delivery Contents

• BT-740 monitor
• Temperature probe
• Blood pressure extension cable
• Standard blood pressure cuff(27-35cm)
• 5-wire ECG cable
• SpO2 extension cable
• Spo2 sensor for adults
• 25 ECG electrodes
• Power cord
• instructions for use
