Ambu Mark IV Resuscitator

• Suitable for adults and children weighing at least 15 kg
• Double chamber structure
• Integrated strap for a secure grip
• Inner bag and outer cover made from silicone
• Max. displaced volume: 1300 ml

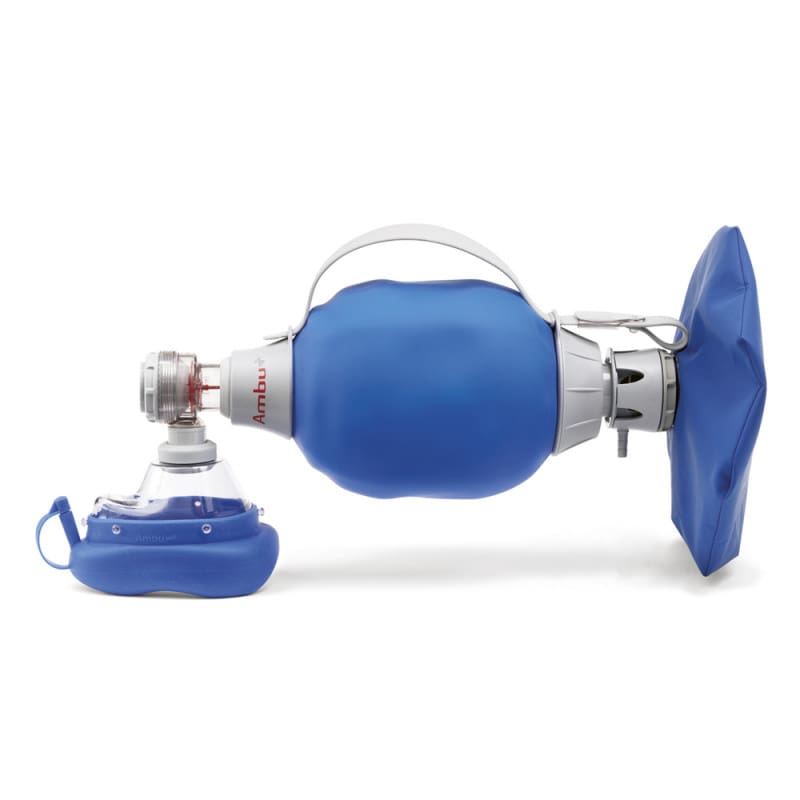

Ambu Mark IV Resuscitator

This high-quality resuscitator from AMBU is suitable for both adults and children, weighing at least 15 kg (approx. 3 years of age). The AMBU Mark IV has a double-chamber structure, thus protecting the patient from excessive ventilation pressure. The integrated hand-held strap even makes it easy for people with small hands to use the valve mask.

Product Details

• AMBU Mark IV resuscitator
• Suitable for the ventilation of adults and children weighing at least 15 kg (approx. 3 years)
• Double-chamber structure (the user can easily see when the max. ventilation pressure has been reached)
• Integrated hand-held strap for a secure grip
• Single-shutter valve system for reliable functionality
• Inner bag and outer cover made from silicone

Technical Data

• Max. displaced volume: 1300 ml
• Dimensions (L x D): 275 x 135 mm
• Patient valve: 22/15 mm (ISO)
• O2 reservoir volume: 1500 ml
• Weight excluding mask: 415 g
• Expiration connector: 30 mm male (ISO)
• Latex-free

A silicone mask size 5 and an oxygen reservoir are included in the delivery of the AMBU Mark IV.
